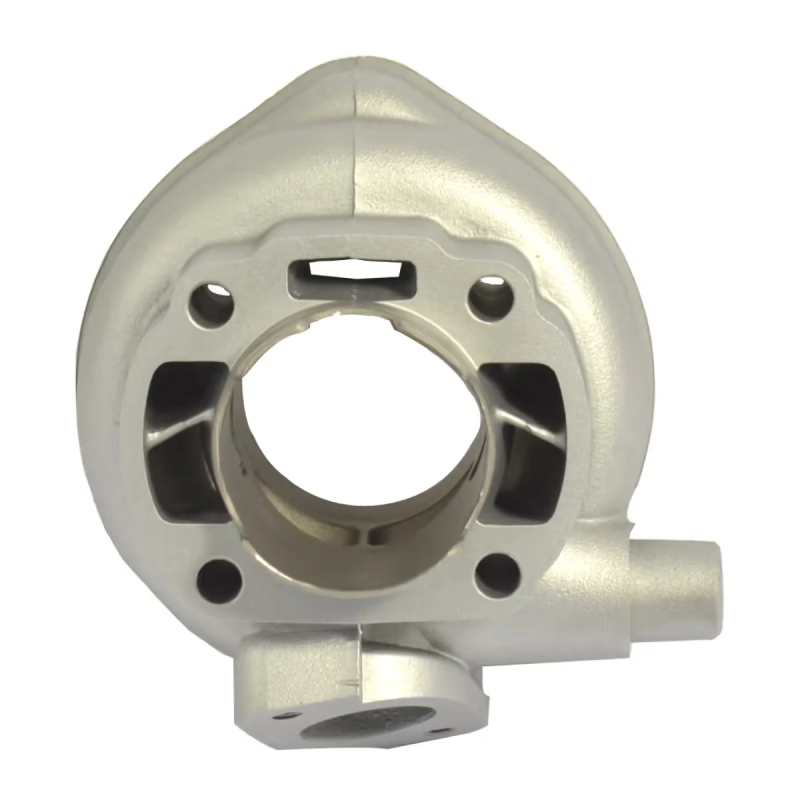

Athena 70cc T5 47.6mm Cylinder Kit – Minarelli Horizontal LC – 10mm Pin – Modular Head

The Athena 70cc T5 cylinder kit is designed for Minarelli horizontal 50cc 2-stroke liquid-cooled (LC) engines with a 10mm wrist pin. This high-quality aluminium racing cylinder features a Nicasil coating for optimal heat dissipation, minimal wear and maximum durability.

With a 47.6 mm bore, this cylinder delivers a powerful 70cc setup with strong acceleration and a wide usable powerband.

The cylinder is equipped with 5 transfer ports and a butterfly exhaust port for optimal gas flow. The supplied modular cylinder head consists of a separate inner and outer head, ensuring improved heat distribution and easy installation.

Technical specifications:

• Brand: Athena
• Manufacturer number: P400485100043
• GTIN: 8052204292608
• Displacement: 70cc
• Bore: 47.60 mm
• Material: Aluminium with Nicasil coating
• Cooling: Liquid cooled (LC)
• Wrist pin: 10mm
• Transfer ports: 5
• Exhaust port: Butterfly type
• Engine type: Minarelli horizontal 50cc 2-stroke
• Tuning level: Race

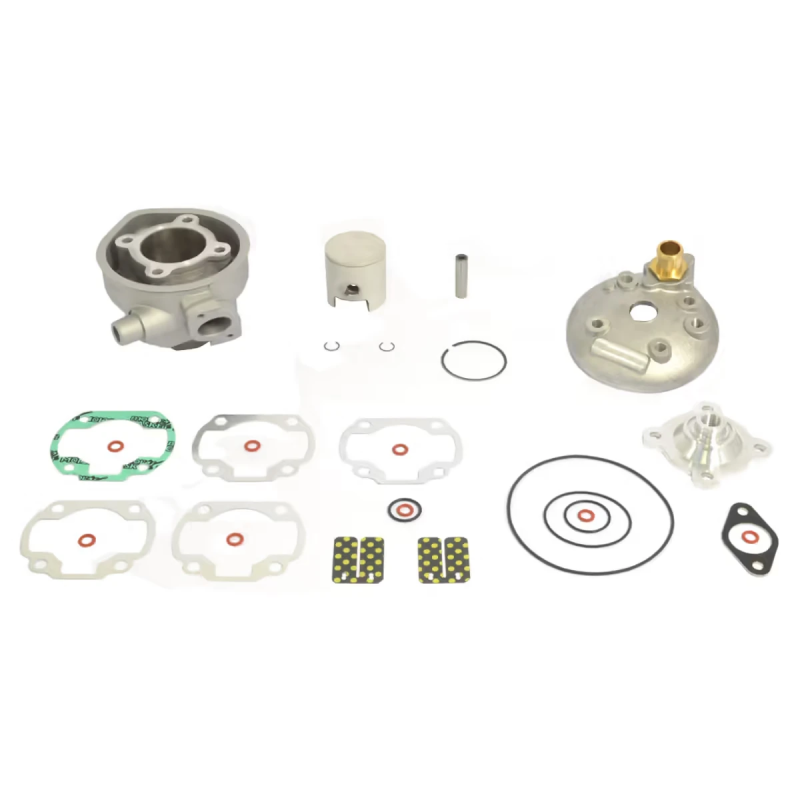

Supplied complete with:

• Cylinder
• Modular cylinder head (separate inner and outer head)
• Piston (10mm wrist pin)
• Piston rings
• Gaskets
• Mounting hardware

Spare parts:

Gasket set:

Athena 47.6mm Minarelli LC Race Gasket Set

Piston:

Athena 47.6mm 10mm Minarelli Race Piston

Note: Only suitable for Minarelli horizontal liquid-cooled engines with 10mm wrist pin.

Also known as Athena T5 70cc Minarelli LC cylinder, Athena 47.6mm pin 10 or Athena modular head Minarelli horizontal.
