Athena Racing 70cc 47.6mm Cylinder Kit Pin 10 – Minarelli Horizontal LC

The Athena Racing 70cc cylinder kit is a high-performance upgrade for Minarelli horizontal 50cc 2-stroke liquid-cooled (LC) engines with a 10mm wrist pin.

With a 47.6 mm bore, this cylinder delivers a powerful 70cc setup with strong acceleration and a wide usable powerband. Ideal for sporty street and racing builds.

Manufactured from aluminium, the cylinder features a butterfly exhaust port for optimal gas flow and strong high-RPM performance.

Technical specifications:

• Brand: Athena
• Series: Racing
• Displacement: 70cc
• Bore: 47.6 mm
• Wrist pin: 10 mm
• Material: Aluminium
• Cooling: Liquid cooled (LC)
• Exhaust port: Butterfly type
• Tuning level: Race
• Engine type: Minarelli horizontal 50cc 2-stroke

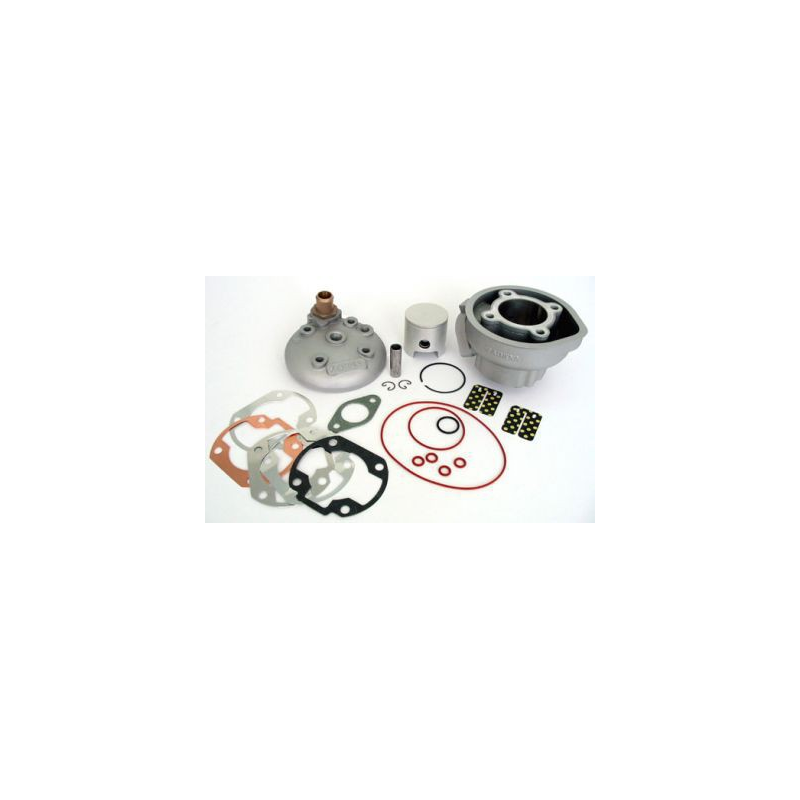

Supplied including:

• 47.6mm aluminium cylinder
• Cylinder head
• Piston (10mm wrist pin)
• Piston rings
• Wrist pin
• Wrist pin clips
• Gasket set

Spare parts:

Gasket set:

Athena 47.6mm Minarelli LC Race Gasket Set

Piston:

Athena 47.6mm 10mm Minarelli Race Piston

Also known as Athena 70cc Minarelli LC cylinder, Athena 47.6mm pin 10 racing kit or Athena Racing Minarelli horizontal 70cc.
