DMP 70cc Cylinder 47mm Cast Iron – Minarelli Horizontal LC

The DMP 70cc cylinder for Minarelli horizontal liquid-cooled (LC) engines is a solid cast iron replacement and sport cylinder with a 47 mm bore. Increasing displacement to approximately 70cc results in improved torque and acceleration compared to the standard 50cc cylinder.

Made from durable cast iron, this cylinder offers reliability and long service life. It is designed to be used with the original cylinder head, making installation straightforward.

This makes the DMP 70cc cylinder an excellent and affordable upgrade for daily use.

Technical specifications:

• Brand: DMP
• Displacement: 70cc
• Bore: 47 mm
• Material: Cast iron
• Cooling: Liquid cooled (LC)
• Engine: Minarelli horizontal
• Engine type: 2-stroke
• Tuning level: Sport / Replacement

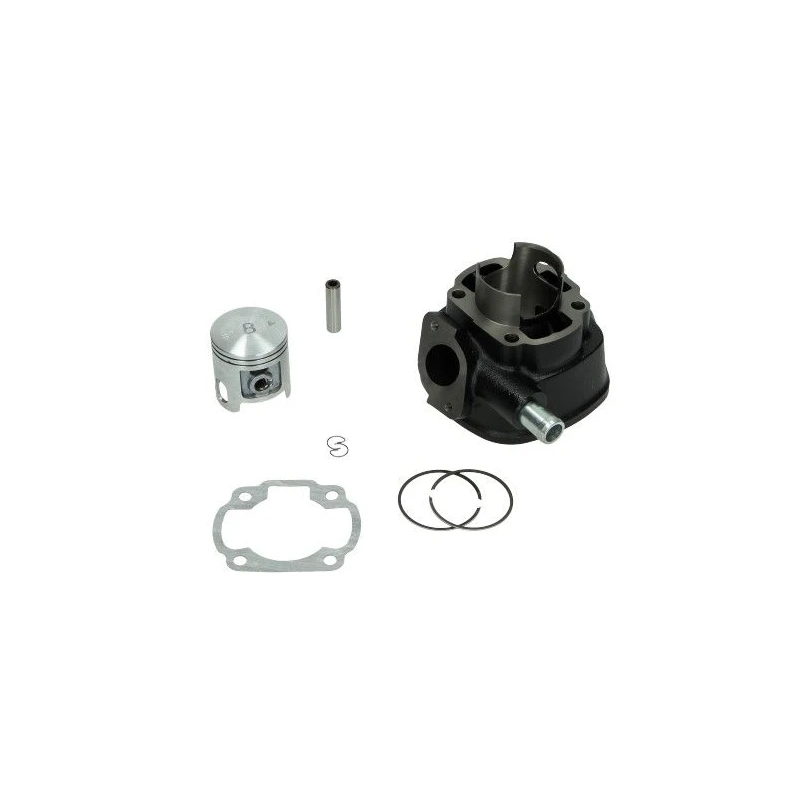

Scope of delivery:

• 70cc cast iron cylinder 47mm
• Piston
• Piston rings
• Piston pin
• 2x piston clips
• Base gasket

Important: We recommend ordering a complete gasket set to replace the cylinder head gasket as well:
Top set Minarelli Horizontal LC 50cc

Note: This 70cc tuning cylinder is not homologated for public road use. Proper carburetor adjustment is recommended for optimal performance.

Also known as DMP 70cc Minarelli horizontal cylinder, 47mm Minarelli LC cylinder or 70cc sport cylinder for Minarelli scooter.
