DMP 70cc Cylinder Kit 45mm Puch Maxi Reed Valve Intake

This DMP 70cc cylinder kit with reed valve intake is a performance upgrade for the Puch Maxi. Thanks to the increased displacement and reed valve intake system, the engine benefits from improved power and throttle response.

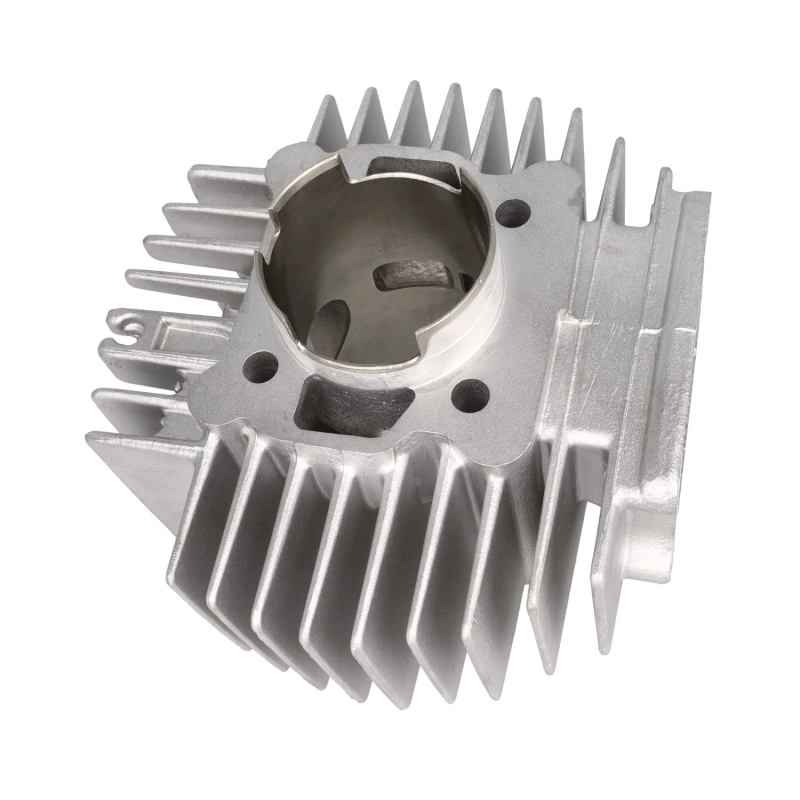

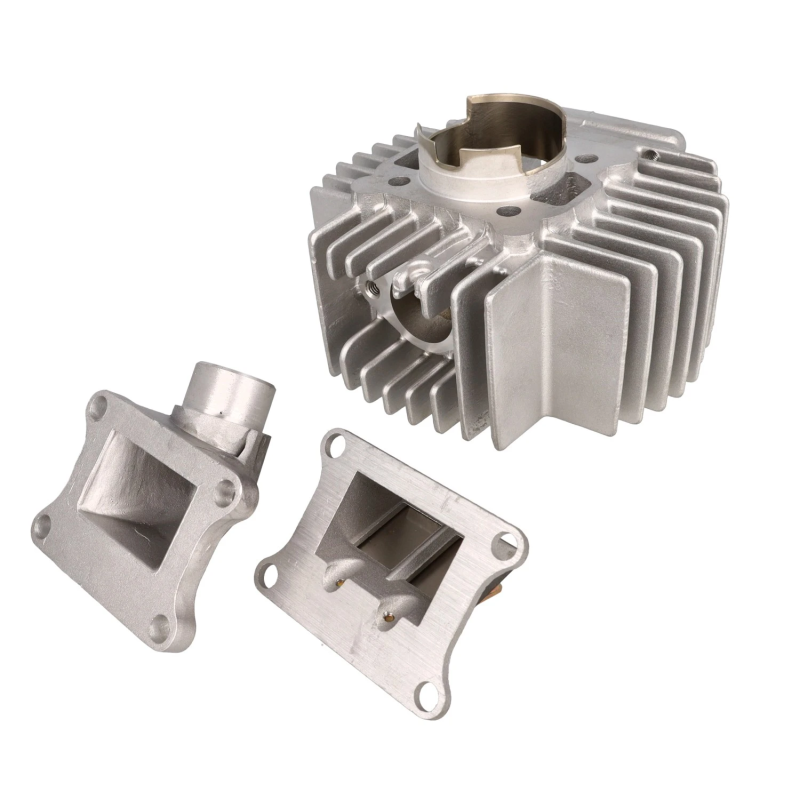

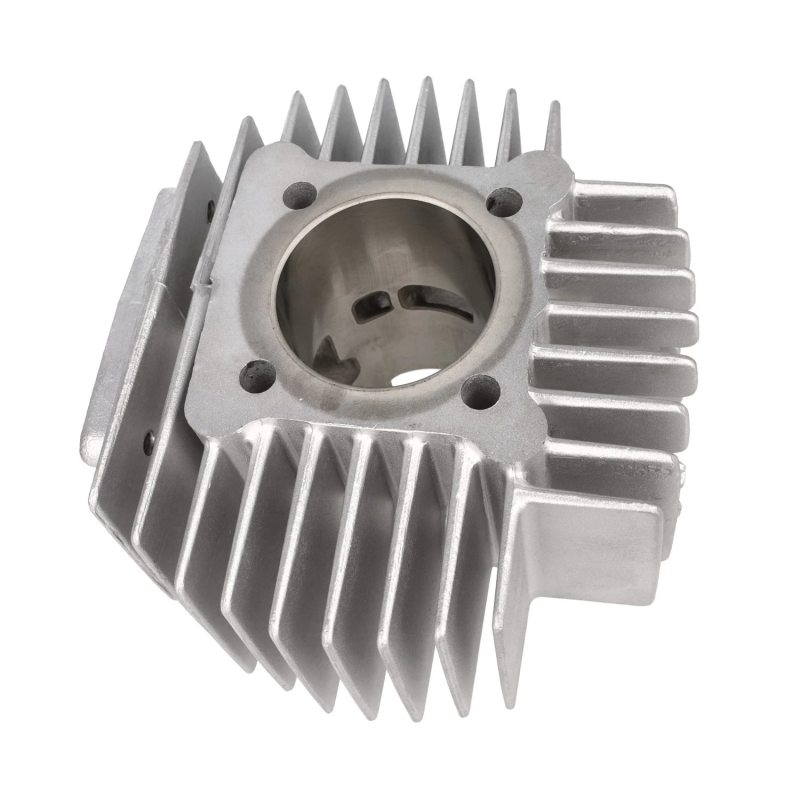

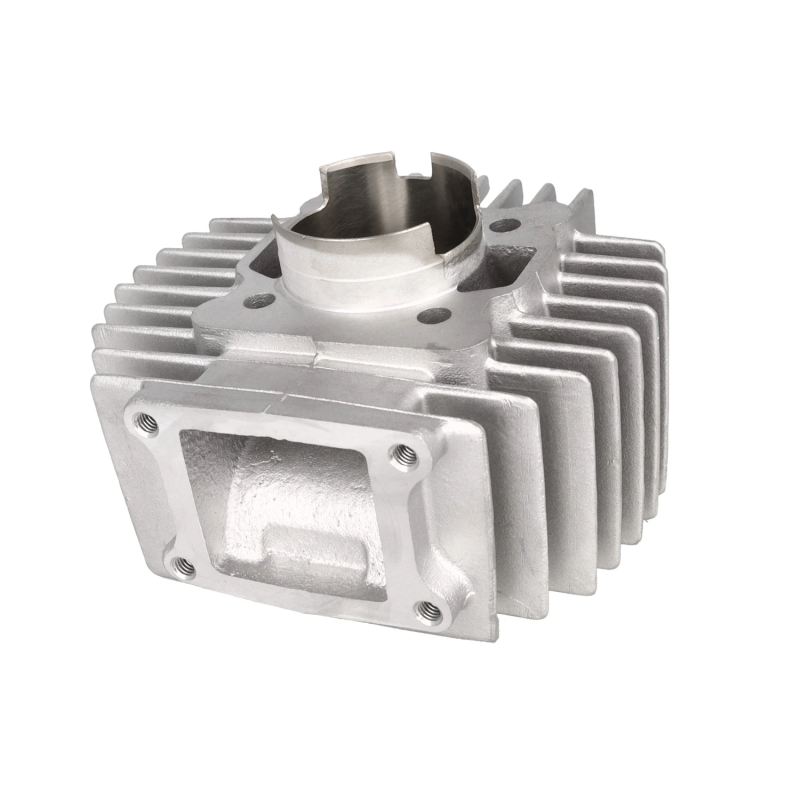

The aluminium cylinder features a 45 mm bore and provides approximately 70cc displacement. It is designed with a butterfly exhaust port and reed valve intake for improved mixture flow.

The kit includes an intake manifold designed for carburetors with a slide-on connection (approx. 24–26mm), suitable for PHBG carburetors. Minor modifications to the intake or crankcase may be required during installation.

Note: this cylinder kit is supplied without gasket set.

Specifications:

• Brand: DMP
• Displacement: 70cc
• Bore: 45 mm
• Cylinder material: Aluminium
• Cooling: Air cooled (AC)
• Piston pin: 12 mm
• Intake: Reed valve intake
• Exhaust port: Butterfly type

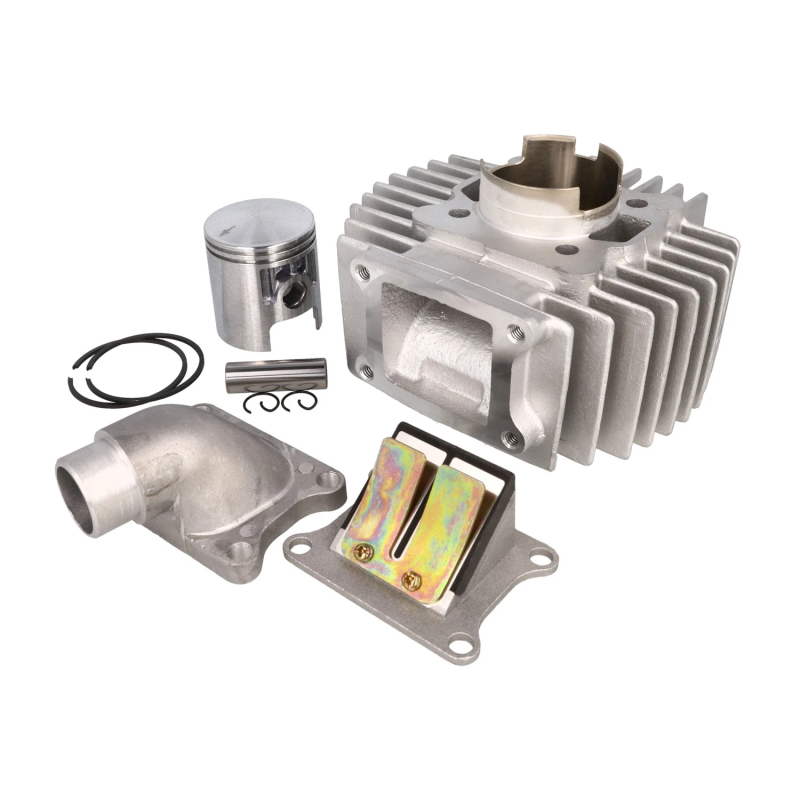

Included in the kit:

• Cylinder

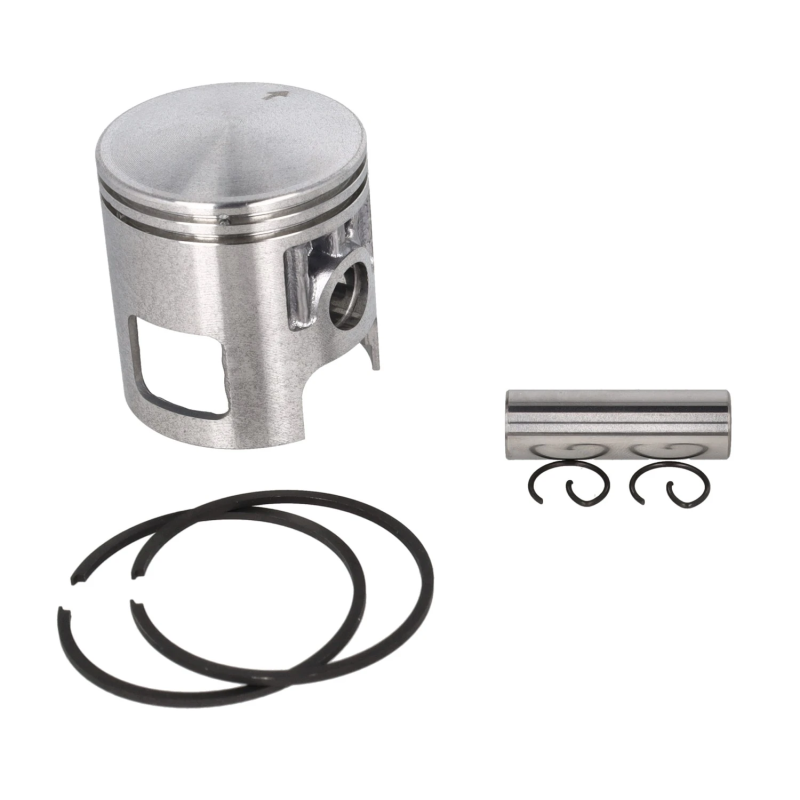

• Piston
• Piston rings
• Piston pin
• Piston clips
• Reed valve
• Intake manifold (for PHBG carburetors)

Fits:

• Puch Maxi

Separate parts for this cylinder:

• Piston: 70cc 45mm Puch Maxi Reed Cylinder Piston
• Gasket set: 60–70cc Puch Maxi Gasket Set
• High compression cylinder head: 70cc Puch Maxi Racing Cylinder Head

If you are looking for a Puch Maxi 70cc cylinder, DMP reed valve cylinder or a performance upgrade for Puch mopeds, this DMP cylinder kit is an excellent choice.
