Cylinder kit Stage6 R/T 95CC Piaggio 2-Stroke LC

Stage6 R/T 95cc Big Bore Cylinder Kit for Piaggio LC

Increase the performance of your Piaggio LC with the Stage6 R/T 95cc Big Bore cylinder kit, the top class cylinder for maximum power and efficiency. Based on the record-breaking Stage6 R/T 70cc, this 95cc cylinder offers more displacement and power.

Contents of the Stage6 R/T 95cc cylinder kit:

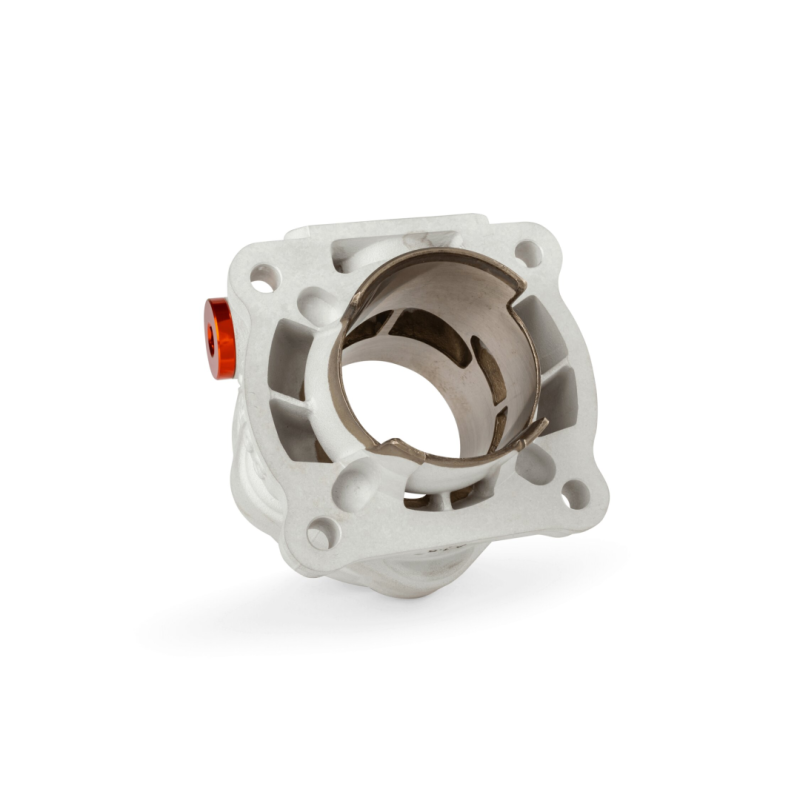

• Nikasil-coated aluminum cylinder with 6 transfer ports and split exhaust port

• Piston, Ø 52mm / piston pin 14mm, with extra thin piston ring

• High-compression modular cylinder head (orange anodized)

• R/T cylinder spacer

• R/T exhaust flange for Stage6 R/T 95 exhaust

• Gaskets and mounting materials

Innovative Design and Assembly: The Stage6 R/T 95cc cylinder kit is not just an enlarged version of the 70cc. The transfer and exhaust ports have been redesigned for an authentic 95cc experience. With a power output of 24 - 26 hp, this kit ranks among the top of high-end race kits on the market.

The special adapter plate is attached to the engine block and the cylinder is mounted via external bolts, without any bolts running through the cylinder. This design offers tuners numerous possibilities to modify and optimize the engine without the usual limitations. A Viton O-ring seal between adapter plate and cylinder ensures that future adjustments are unnecessary.

Excellent Thermal Properties: The combustion chamber is attached to the cylinder at five points, each with its own cooling pocket. These critical areas are thus stabilized and the risk of the piston seizing is minimized. The coated Vertex piston ensures a shorter running-in period and has better emergency running properties, forgiving minor errors.

The exhaust flange is secured with 3 bolts and is suitable for Stage6 R/T exhausts; other flange types are available.

Important Installation Instructions: The crankcase must be modified to make room for the cylinder base (Ø 58.4mm +/- 0.1mm, 10mm deep). Instructions are included. Use only Stage6 spare parts to prevent damage to the kit. For optimal performance, a crankshaft with a stroke of 44mm, a connecting rod of 90mm, and a piston pin of 14mm are necessary.

Upgrade to the Stage6 R/T 95cc cylinder kit and experience unparalleled power and performance on your Piaggio LC!
