€299.99 Out-of-Stock

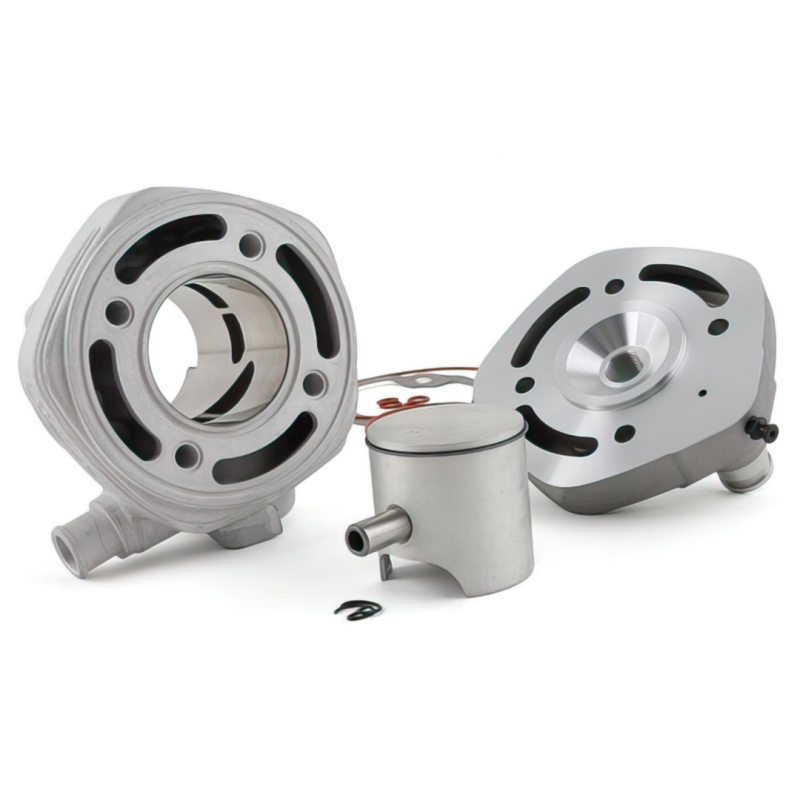

Cylinder kit Stage6

Model: Racing MK2

This cylinder fits in the crankcase without modifications.

Specifications:

  • Material: Aluminium / Nicasil
  • Number of CC: 70CC
  • Pin size: 10MM
  • Bore: 47.6MM
  • Stroke: Original
  • Conrod length: Original

Suitable for, among others:

  • Minarelli Horizontal Water-cooled

Delivered as shown in the picture.

Benefits of our shop
Kiyoh gives us a 9
More than 10.000 products in stock
Expert advice & own workshop
Free shipping from €150,-
Free after payment

Cylinder kit Stage6

Model: Racing MK2

This cylinder fits in the crankcase without modifications.

Specifications:

  • Material: Aluminium / Nicasil
  • Number of CC: 70CC
  • Pin size: 10MM
  • Bore: 47.6MM
  • Stroke: Original
  • Conrod length: Original

Suitable for, among others:

  • Minarelli Horizontal Water-cooled

Delivered as shown in the picture.

Description

Stage6 Racing MK2 70cc Cylinders - Maximum Performance for your Minarelli LC

Take your scooter to unprecedented heights with the Stage6 Cylinder Kit 70cc Racing MK2 for Minarelli Horizontal LC engines. The successor to the successful Stage6 70cc racing cylinder, the MKII, has been completely redesigned to deliver even better performance out of the box.

This cylinder kit is suitable for 50cc scooters with a Minarelli Horizontal LC engine, such as the Yamaha Aerox

CYLINDER DESIGN STAGE6 MK2 RACING The cylinder, equipped with a high-quality hard chrome bore, has been completely revised. The new design with 6 instead of 5 ports improves the cylinder filling. The dome-shaped piston with a 0.8 mm thick piston ring optimizes performance and promotes heat dissipation. Thermal properties have been improved in all areas. The generous flushing of the bridge exhaust, the pentagonal design with internal cooling fins, and the one-piece head with cast flushing channels are just a few of the many improvements. Port times are 190°-130°.

Choose the Stage6 Racing MK2 and experience unparalleled speed and reliability!

Specifications
Article number
C0404D-S6-7416606
Brand
Stage6
Aantal CC
70CC
Motortype
Minarelli Horizontaal Watergekoeld
