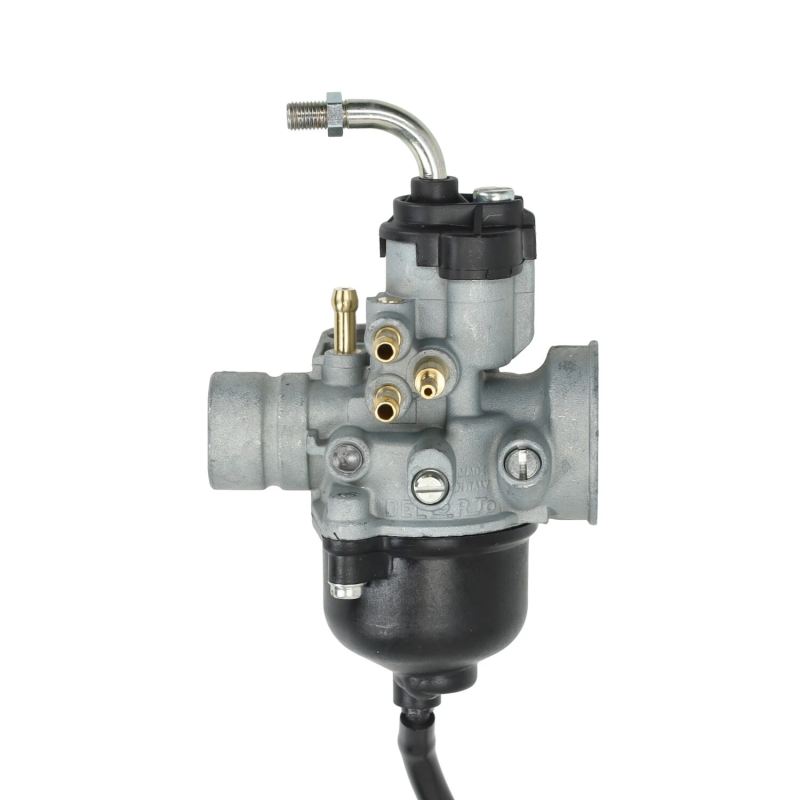

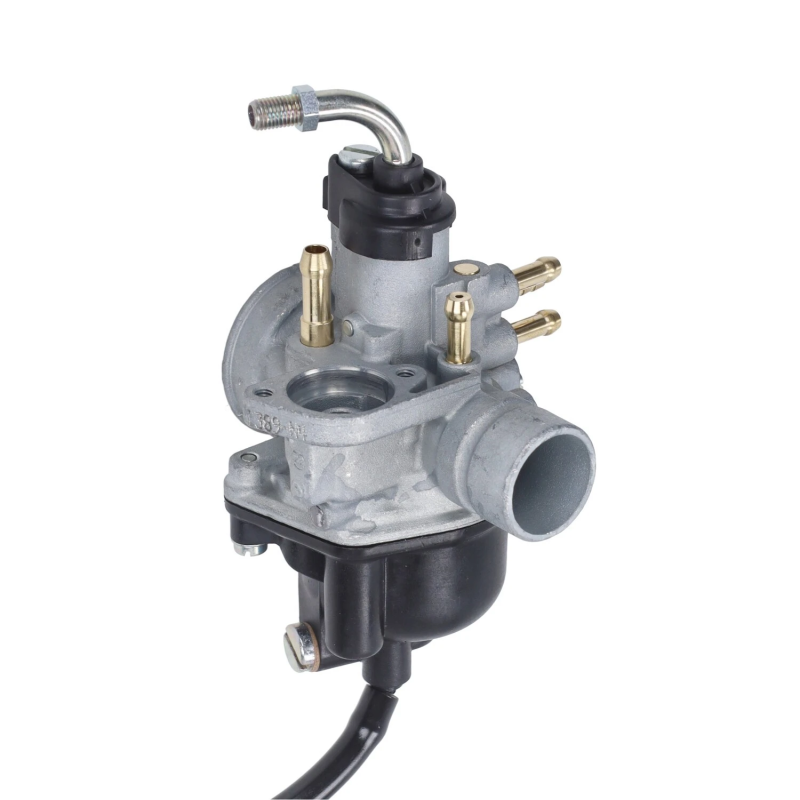

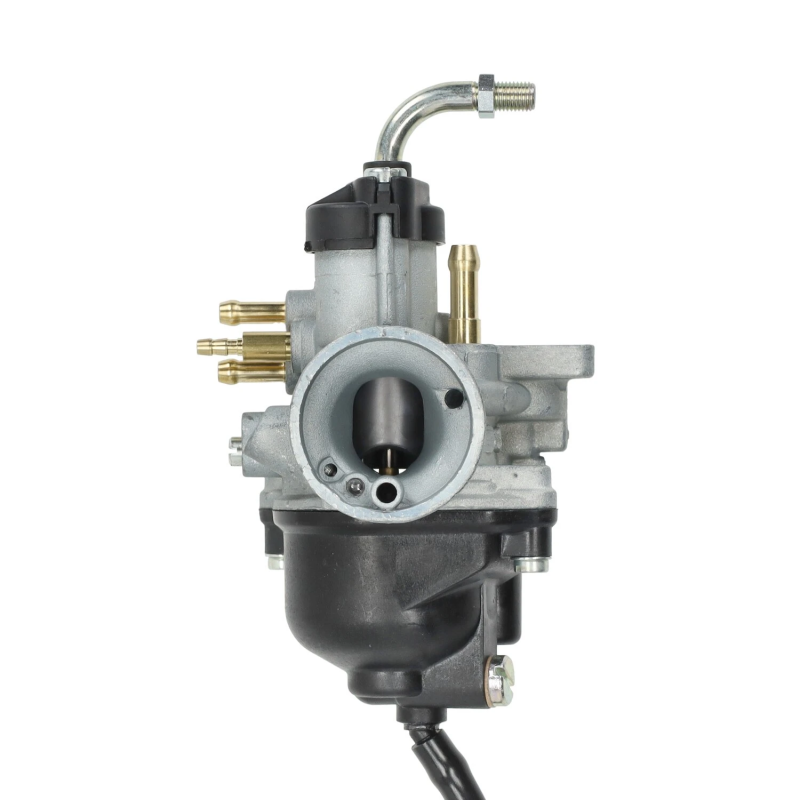

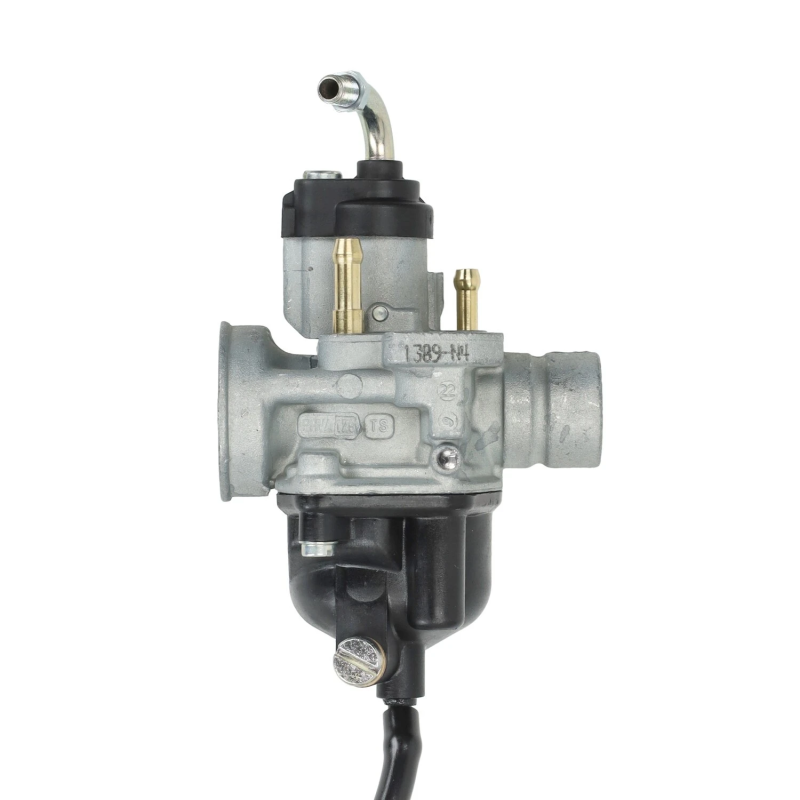

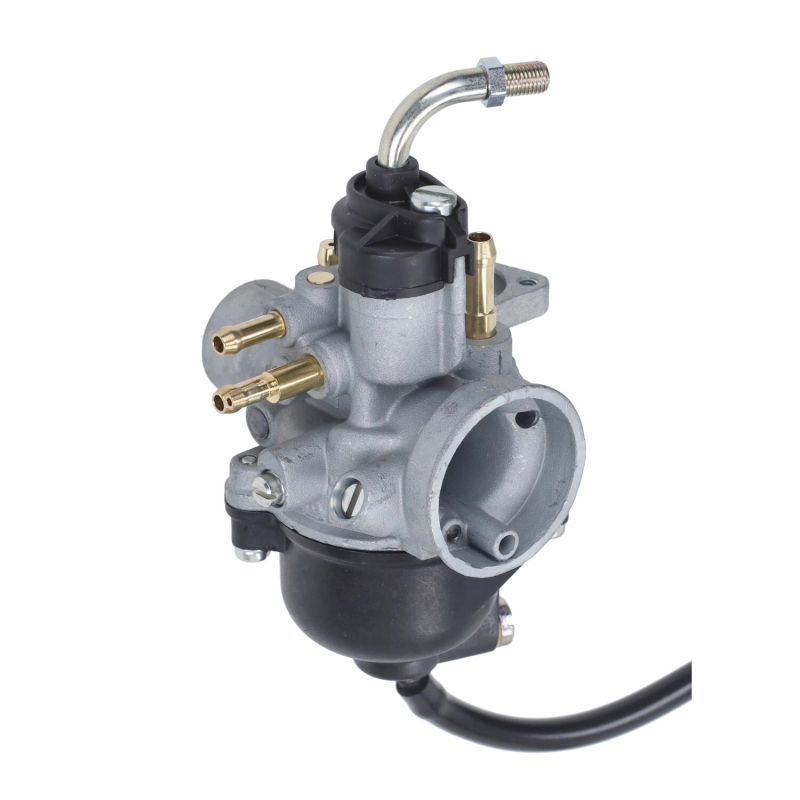

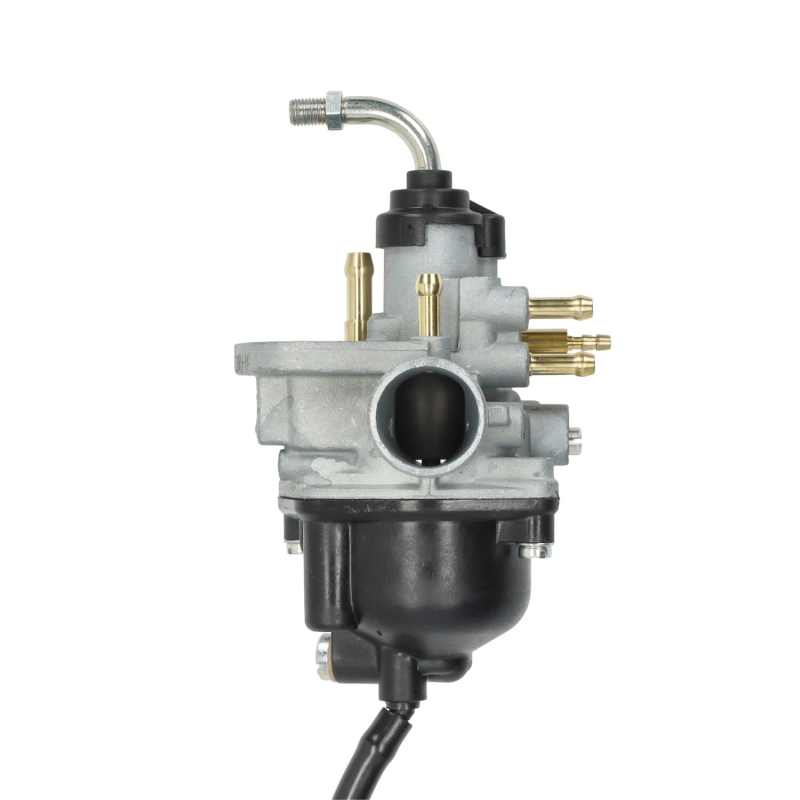

Dellorto PHVA 17.5mm TS Carburetor Electric Choke Minarelli 01389

The Dellorto PHVA 17.5mm TS carburetor is a genuine Dellorto carburetor for various Minarelli 2-stroke scooters. This is the version with genuine Dellorto part number 01389, ensuring the original Dellorto quality, fit and reliability.

With its 17.5 mm venturi, this carburetor delivers improved airflow and fuel delivery compared to many standard carburetors, resulting in smoother throttle response and improved engine performance. The automatic electric choke provides reliable cold starts.

The carburetor is equipped with a coolant connection (carburetor heating), oil inlet, fuel inlet and vacuum connection. The idle speed and air mixture adjustment screws are located on the left-hand side.

This carburetor uses Dellorto large 6mm main jets. Looking for a different jet size? Browse our range of Dellorto 6mm main jets.

Specifications

• Genuine Dellorto carburetor
• Genuine Dellorto part number: 01389
• Model: PHVA TS
• Venturi: 17.5 mm
• Electric choke
• Suitable for Minarelli 2-stroke engines
• Engine connection: 24 mm
• Air filter connection: 35 mm
• Main jet: 80
• Idle jet: 38
• Needle: A20
• Main jet type: Dellorto large 6 mm
• Coolant connection (carburetor heating)
• Oil inlet
• Fuel inlet
• Vacuum connection
• Idle and air adjustment screws on the left side

The genuine Dellorto PHVA 17.5mm TS carburetor (01389) is the ideal replacement for worn or damaged original carburetors and offers reliable performance, excellent throttle response and long service life.
