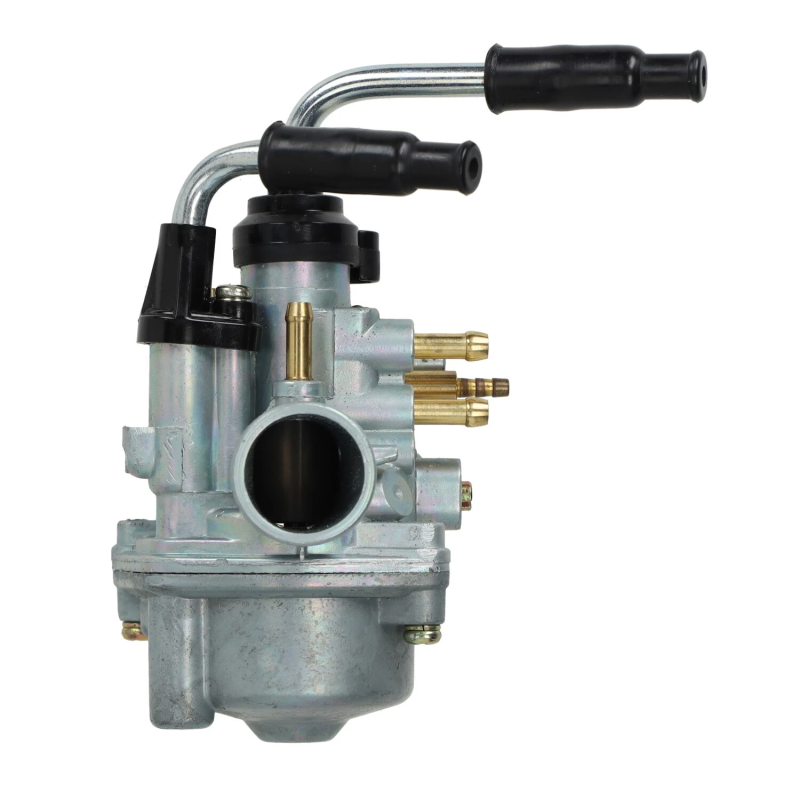

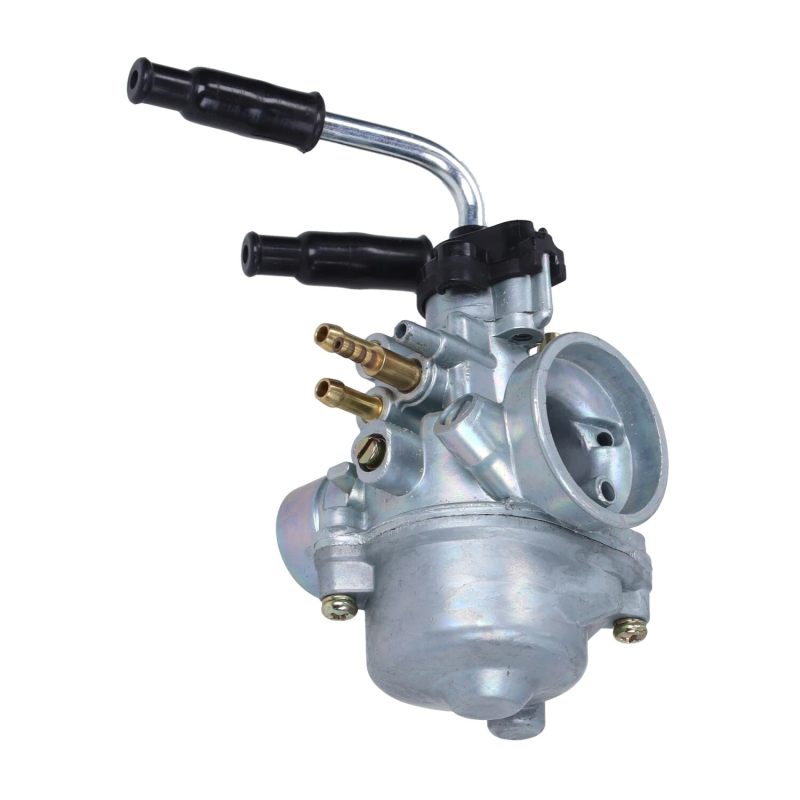

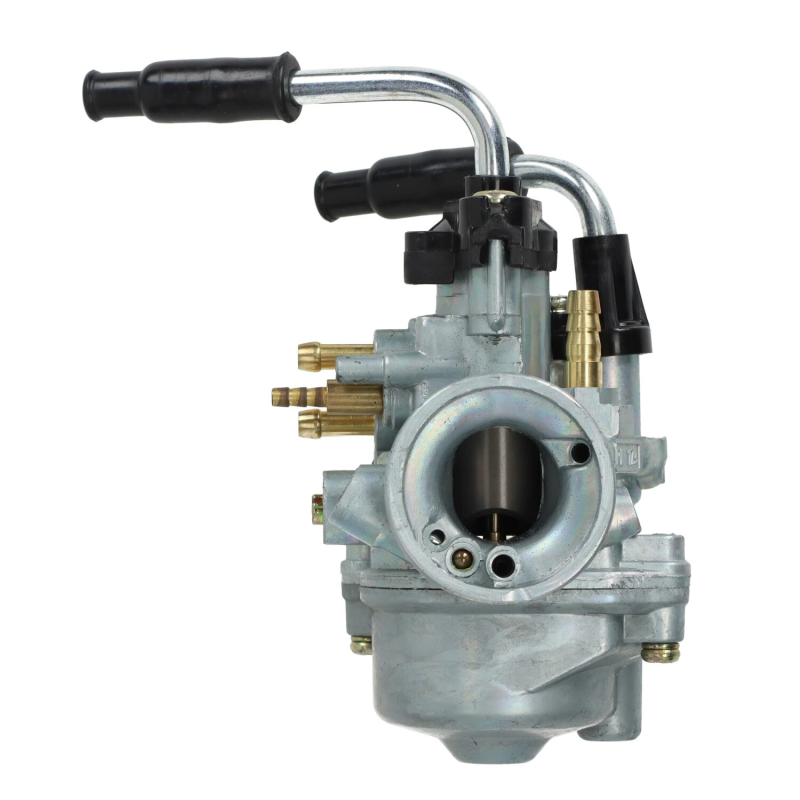

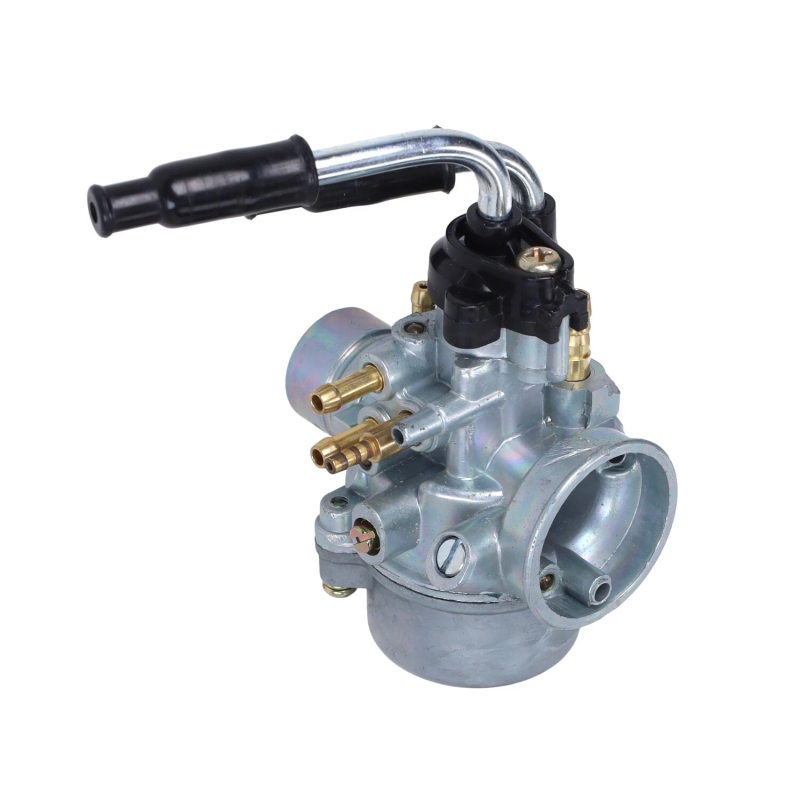

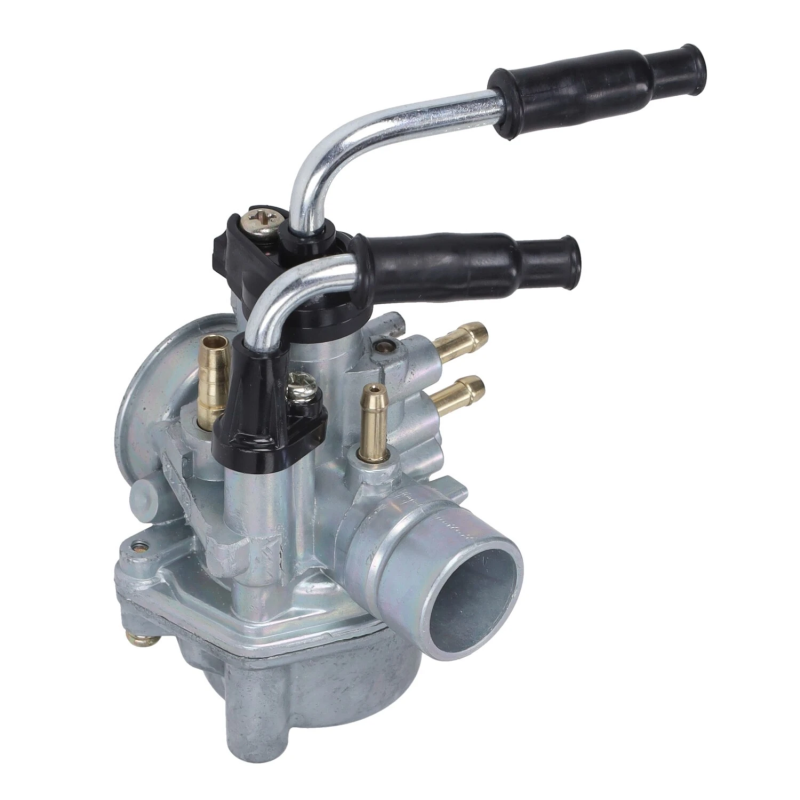

DMP 17.5mm Carburetor Manual Choke Minarelli Dellorto PHVA Replica

The DMP 17.5mm carburetor is a high-quality aftermarket replica of the well-known Dellorto PHVA carburetor. It is designed for a wide range of Minarelli 2-stroke scooters and features the same mounting dimensions as the original Dellorto, making it an easy replacement.

With its 17.5 mm venturi, this carburetor provides improved airflow and fuel delivery for standard and mildly tuned engines. This version is equipped with a manual cable-operated choke.

The carburetor includes a coolant connection (carburetor heating), oil inlet, fuel inlet and vacuum connection. The carburetor heating connection, idle speed screw and air mixture screw are all located on the left-hand side.

This carburetor uses Dellorto large 6mm main jets. Looking for different jet sizes? Browse our range of Dellorto 6mm main jets.

Specifications

• DMP aftermarket carburetor
• Dellorto PHVA replica
• Venturi: 17.5 mm
• Manual cable choke
• Suitable for Minarelli 2-stroke engines
• Engine connection: 24 mm
• Air filter connection: 35 mm
• Main jet type: Dellorto large 6 mm
• Coolant connection (carburetor heating)
• Carburetor heating connection on the left side
• Oil inlet
• Fuel inlet
• Vacuum connection
• Idle adjustment screw on the left side
• Air mixture screw on the left side
• Main jet, idle jet and needle: unknown

The DMP 17.5mm carburetor is an excellent budget-friendly replacement for the original Dellorto PHVA carburetor. Thanks to the identical connection dimensions, installation is straightforward on many Minarelli-powered scooters.
