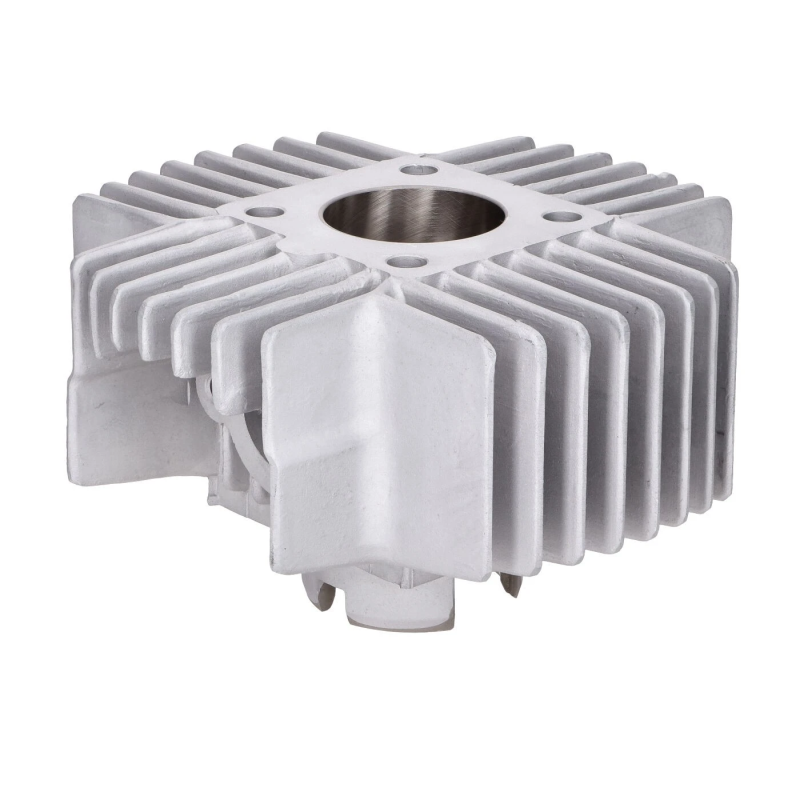

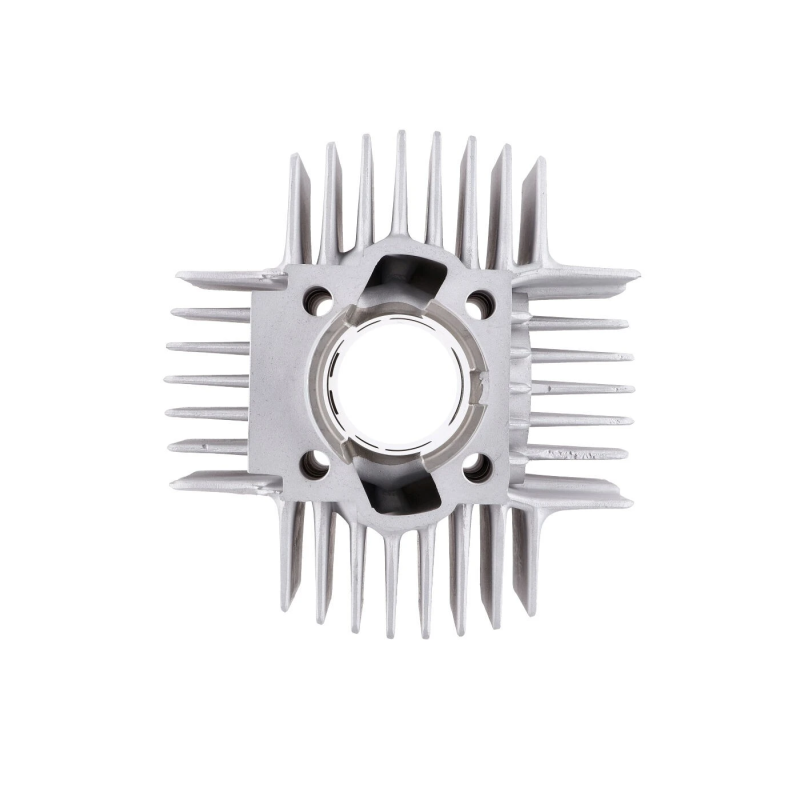

DMP 50cc 38mm 6-Port Cylinder Kit – Puch Maxi 12mm Pin

The DMP 50cc 6-port cylinder kit is a sporty replacement cylinder for the Puch Maxi. Thanks to the 6-port design, it offers improved performance compared to standard lower-port versions.

With a 38 mm bore, this cylinder maintains the original 50cc displacement, while delivering stronger performance due to optimized port timing. Ideal for a fast street setup.

Manufactured from aluminium, the cylinder is air-cooled and uses a 12 mm wrist pin.

Note: Supplied without gasket set and without cylinder head. Please order separately.

Technical specifications:

• Brand: DMP
• Application: Puch Maxi
• Displacement: 50cc
• Bore: 38 mm
• Wrist pin: 12 mm
• Material: Aluminium
• Cooling: Air cooled
• Transfer ports: 6
• Tuning level: Sport / Fast street

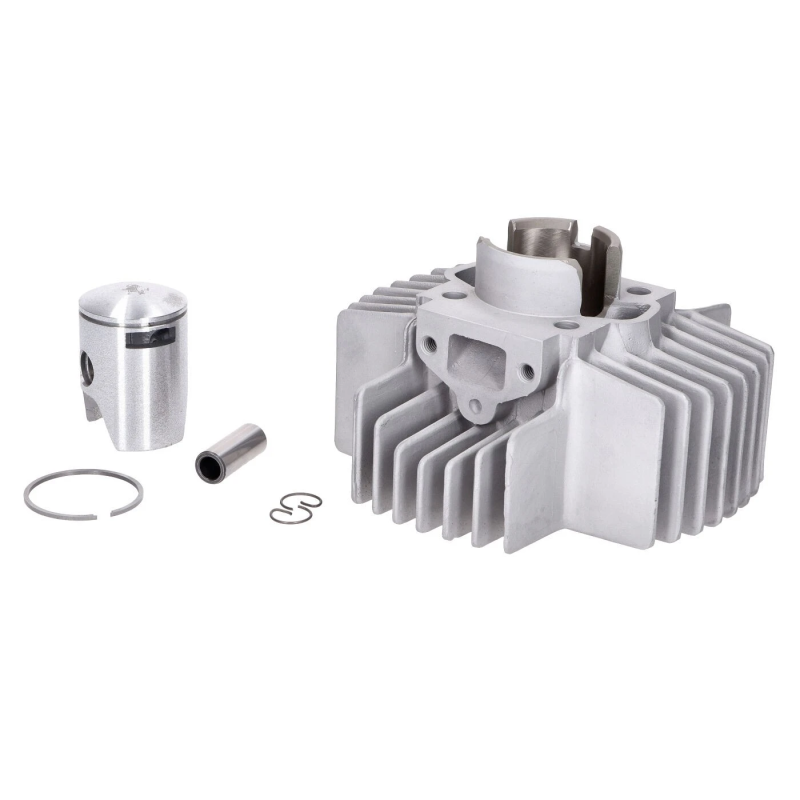

Supplied including:

• 38mm aluminium cylinder
• Piston
• Piston ring
• 12mm wrist pin
• Wrist pin clips

Not included, order separately:

Gasket set:

Puch Maxi Standard 50cc Gasket Set

Cylinder head:

Puch Maxi 50cc New Model Race Cylinder Head

Also known as DMP 50cc Puch Maxi cylinder, 38mm 6-port Puch Maxi cylinder or DMP fast 50cc Puch Maxi kit.
