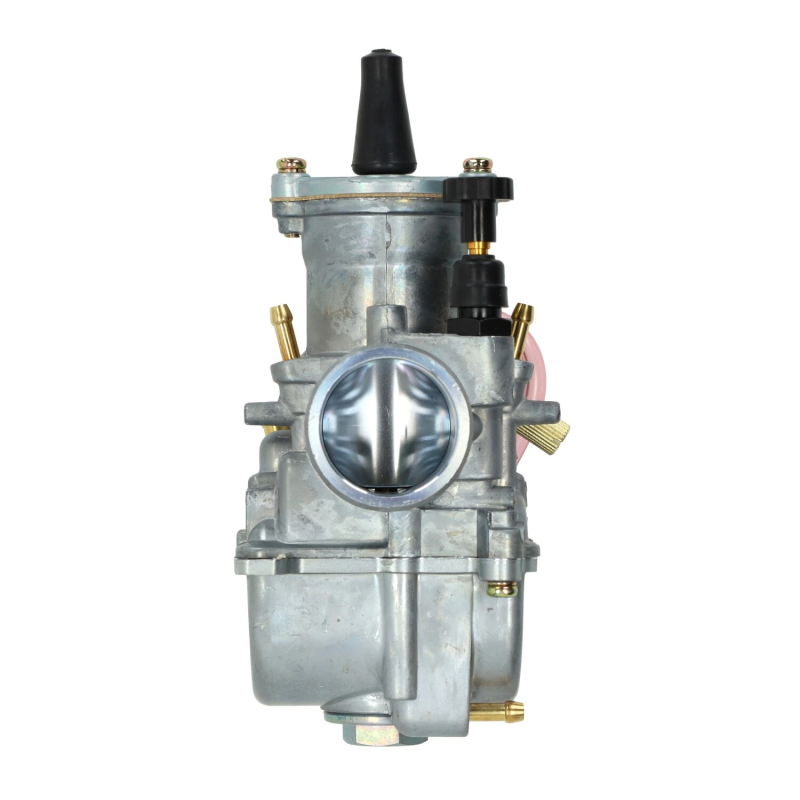

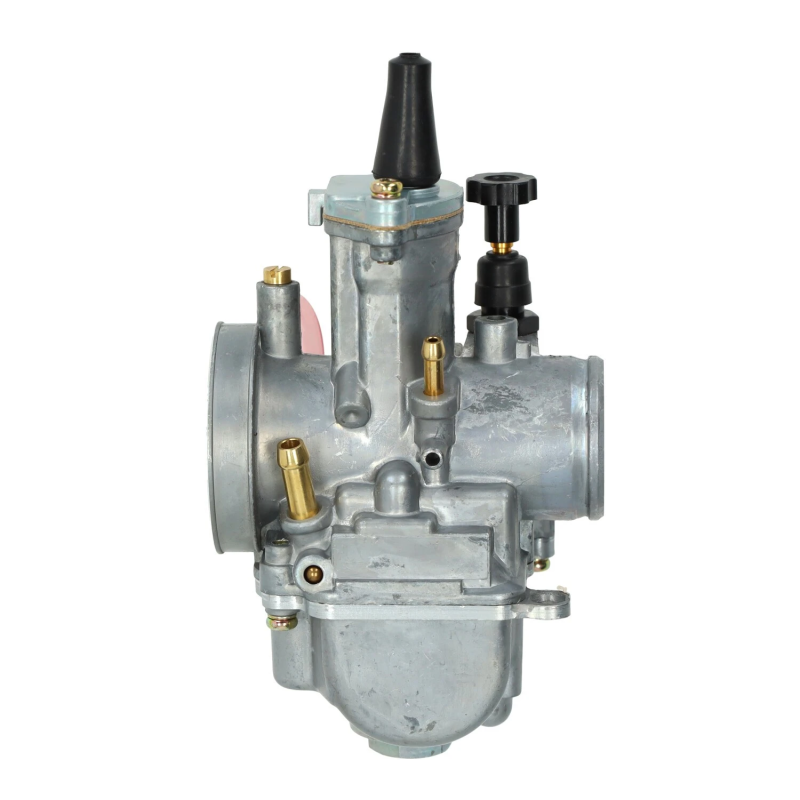

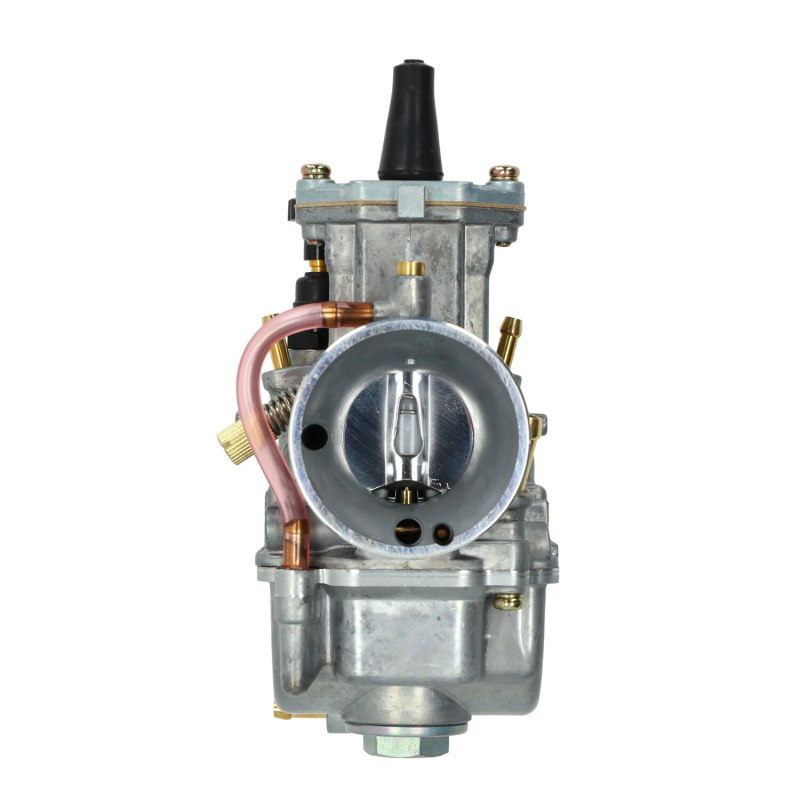

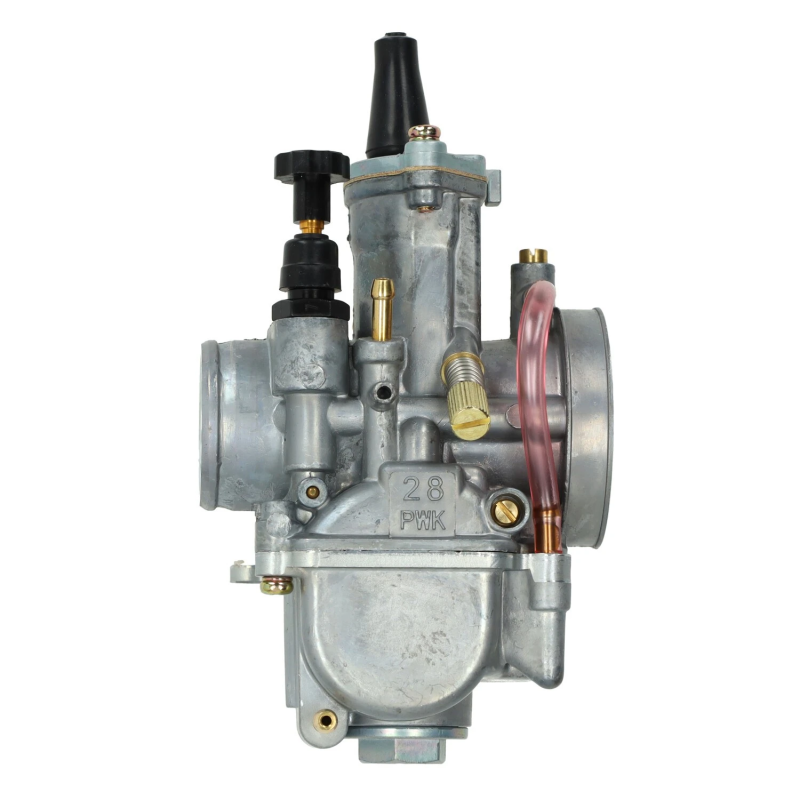

DMP PWK 28mm Replica Carburetor Manual Choke with Intake Rubber

The DMP PWK 28mm carburetor is an affordable replica of a PWK carburetor for sporty and highly tuned 2-stroke scooters, mopeds and geared mopeds. Its large 28 mm venturi allows the engine to process a greater volume of air and fuel, making this carburetor suitable for powerful engine configurations.

This carburetor is equipped with a flat slide throttle valve. This type of throttle slide promotes efficient airflow and fast throttle response. The manual choke makes starting a cold engine easy.

The carburetor has a 34 mm outer diameter intake connection and a 49 mm air filter connection. It is equipped with a fuel inlet.

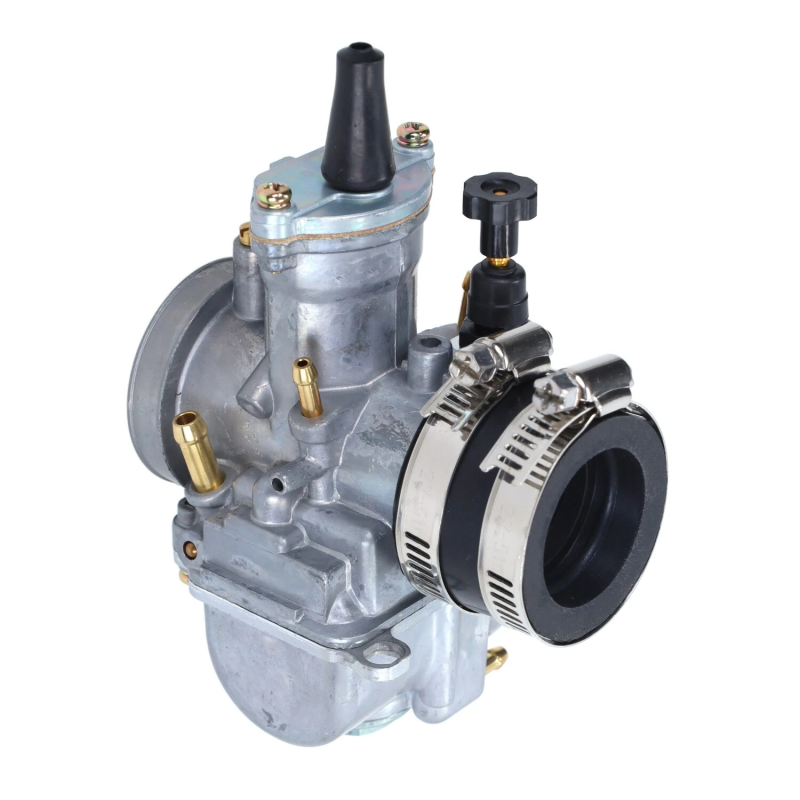

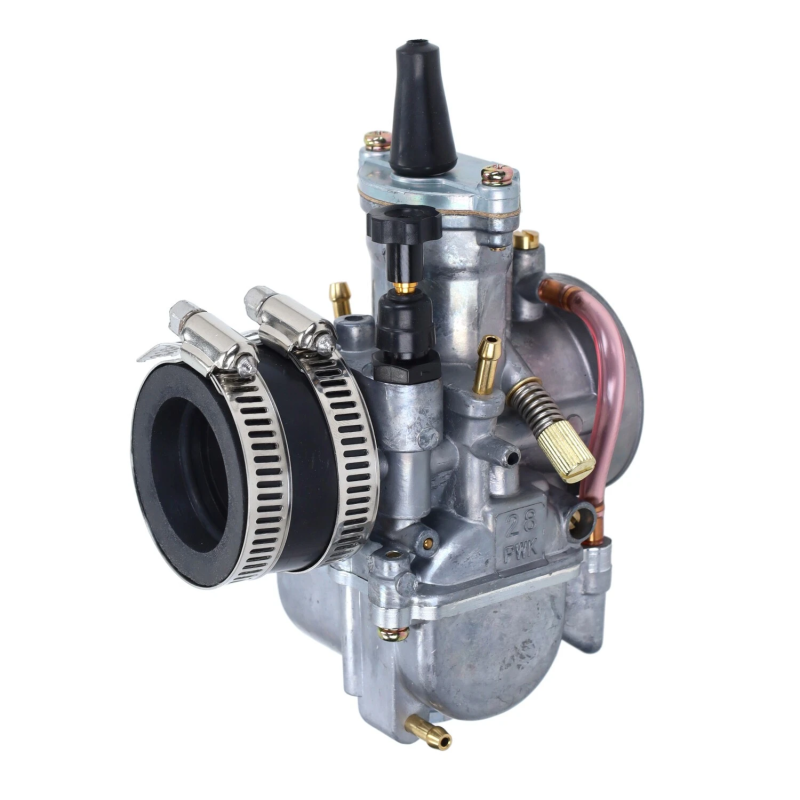

This DMP PWK carburetor is supplied with a separate intake manifold rubber. The rubber has a 35 mm connection on both the carburetor side and the intake manifold side. This allows the carburetor to be fitted to a suitable 35 mm intake connection.

This carburetor uses Keihin PWK hexagonal M5 main jets. Browse our range of Keihin, OKO and PWK main jets. For a selection of different jet sizes, view our PWK main jet sets.

The following intake manifolds can be used for installation on various engine types:

• Minarelli horizontal 2-stroke: Polini 35 mm rotating intake manifold for horizontal Minarelli
• Piaggio 50-180cc 2-stroke: Polini 35 mm rotating intake manifold for Piaggio 2-stroke
• Derbi, Minarelli AM6, Honda MT, MB and MTX: Polini 35 mm rotating intake manifold for Derbi, AM6 and Honda

Specifications

• Brand: DMP
• Replica of a PWK carburetor
• Model: PWK
• Engine type: 2-stroke
• Venturi: 28 mm
• Choke operation: Manual choke
• Throttle valve type: Flat Slide
• Intake connection: Slip-fit
• Carburetor intake connection: 34 mm
• Air filter connection: 49 mm
• Main jet type: Keihin PWK hexagonal M5
• Fuel inlet
• Intake manifold rubber included
• Carburetor-side rubber connection: 35 mm
• Intake manifold-side rubber connection: 35 mm
• Main jet size: Unknown
• Idle jet size: Unknown
• Needle: Unknown
• Vacuum

This DMP PWK 28mm carburetor is an affordable choice for sporty 2-stroke setups requiring a large carburetor, fast throttle response and extensive tuning options. The included 35/35 mm intake rubber allows it to be combined directly with a suitable 35 mm intake manifold connection.
