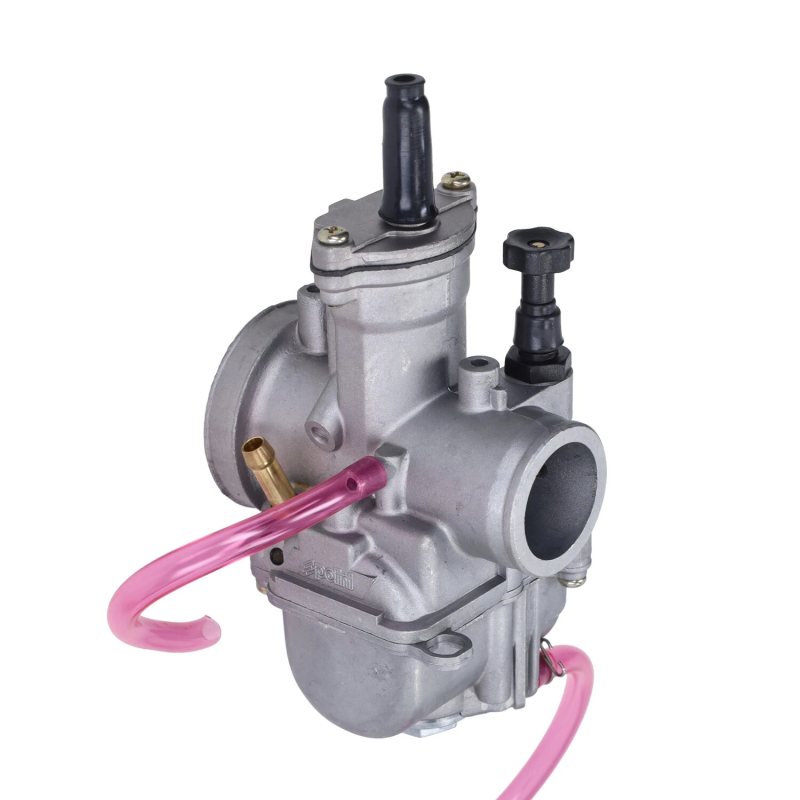

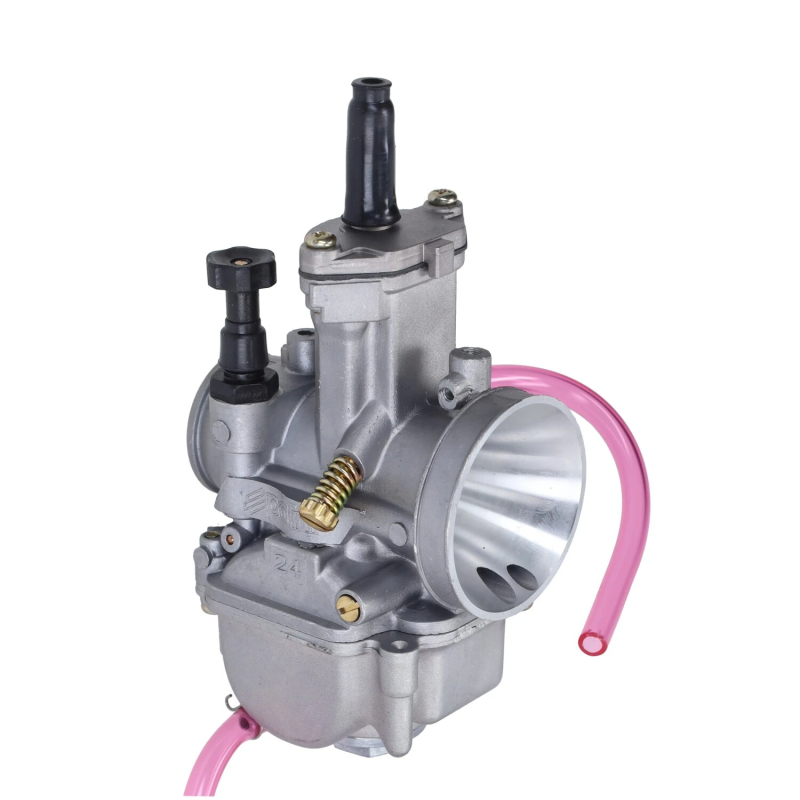

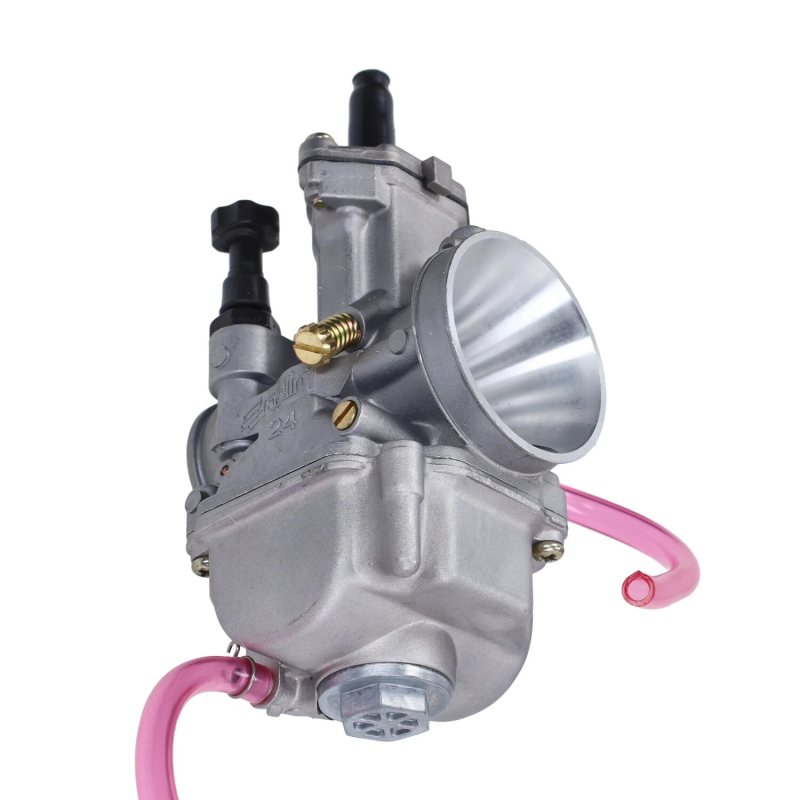

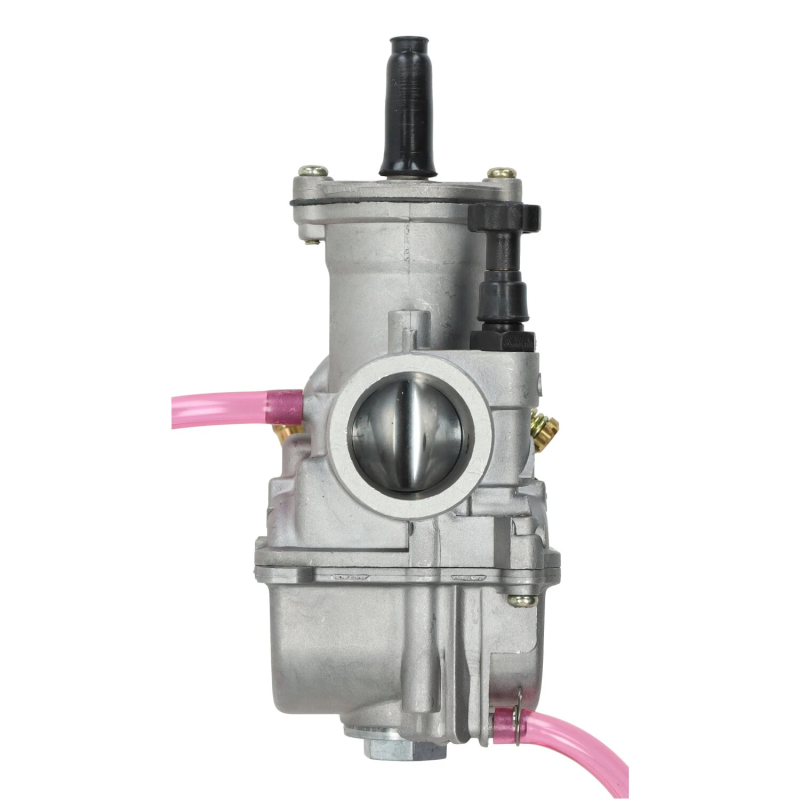

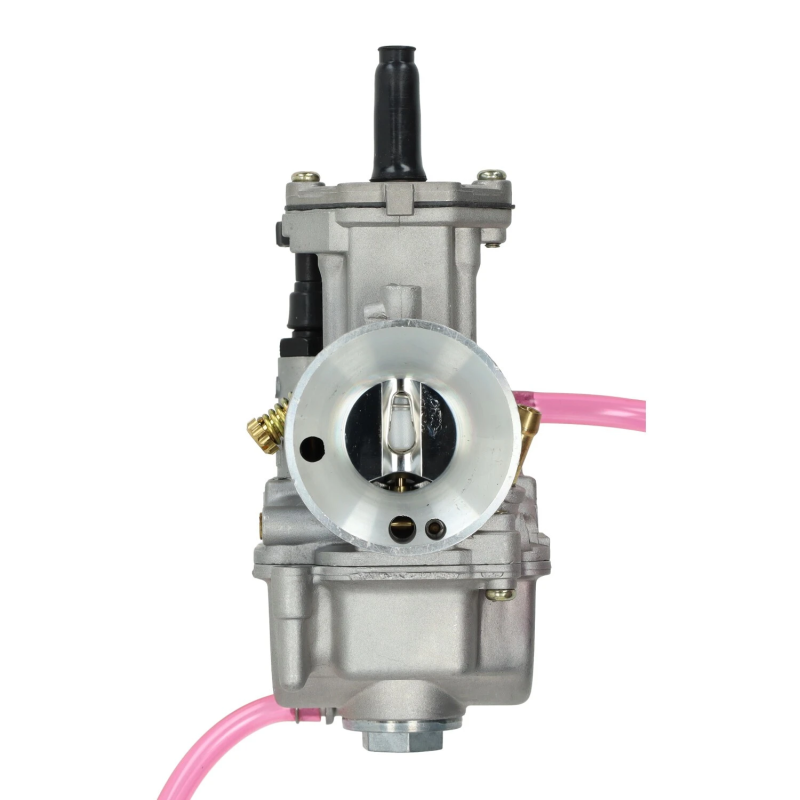

Genuine Polini PWK 24mm Carburetor Manual Choke 201.0166

The genuine Polini PWK 24mm carburetor is designed for sporty and tuned 2-stroke scooters, mopeds and geared motorcycles. Its 24 mm venturi provides a good balance between airflow, fuel delivery, throttle response and tuning potential.

The carburetor body is manufactured from lightweight aluminium and fitted with a chrome-plated D-slide throttle valve. This flat slide design provides smooth throttle operation, a quick response when opening the throttle and stable fuel delivery at different throttle positions. The chrome-plated finish also helps reduce wear on the throttle slide.

This version features a manual choke for easy cold starting. It has a 34.8 mm slip-fit intake manifold connection and a 48.8 mm air filter connection. The carburetor is equipped with a fuel inlet and has no oil or vacuum connection.

The standard setup consists of a size 105 main jet, a size 45 idle jet and a 24/26 needle. This carburetor uses Keihin PWK hexagonal M5 main jets. Browse our range of Keihin, OKO and PWK main jets. For a selection of different jet sizes, view our PWK main jet sets.

The 34.8 mm intake connection is compatible with the following 35 mm Polini intake manifolds:

• Minarelli horizontal 2-stroke: Polini 35 mm rotating intake manifold for horizontal Minarelli
• Piaggio 50-180cc 2-stroke: Polini 35 mm rotating intake manifold for Piaggio 2-stroke
• Derbi, Minarelli AM6, Honda MT, MB and MTX: Polini 35 mm rotating intake manifold for Derbi, AM6 and Honda

Specifications

• Brand: Polini
• Genuine Polini carburetor
• Genuine Polini part number: 201.0166
• GTIN: 8054705051555
• Model: PWK
• Engine type: 2-stroke
• Venturi: 24 mm
• Choke operation: Manual choke
• Carburetor body: Aluminium
• Intake connection: Slip-fit
• Intake manifold connection: 34.8 mm
• Air filter connection: 48.8 mm
• Throttle valve type: Chrome-plated D-Slide
• Needle type: 24/26
• Main jet: 105
• Idle jet: 45
• Main jet type: Keihin hexagonal M5 (PWK/CP)
• Fuel inlet
• No oil connection
• No vacuum connection

Polini Motori is an Italian manufacturer with decades of experience in developing racing and tuning components for scooters, mopeds and motorcycles. Polini PWK carburetors are known for their technical precision, crisp throttle response and extensive tuning options.
