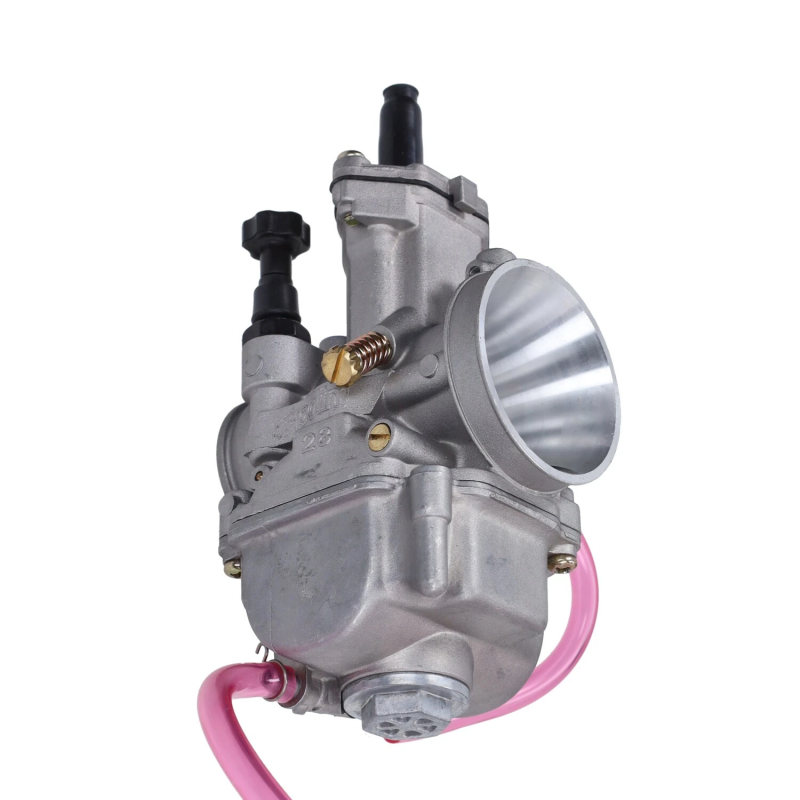

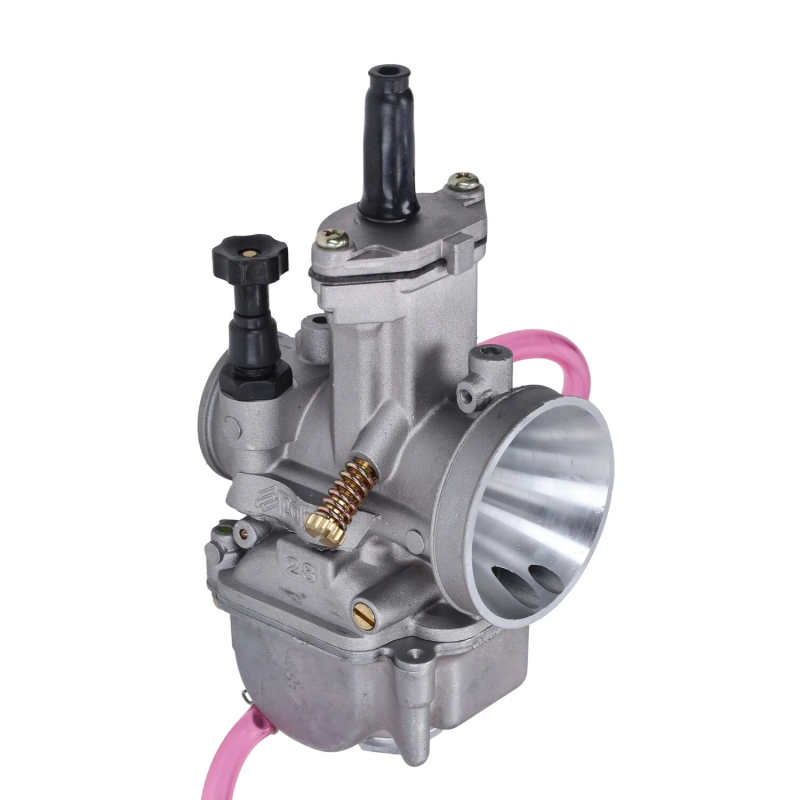

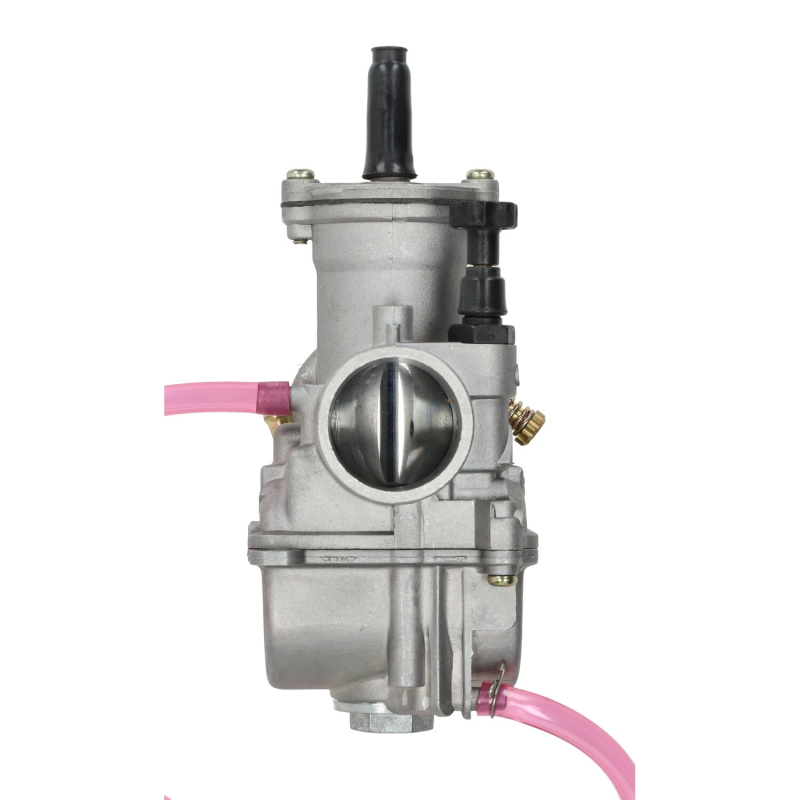

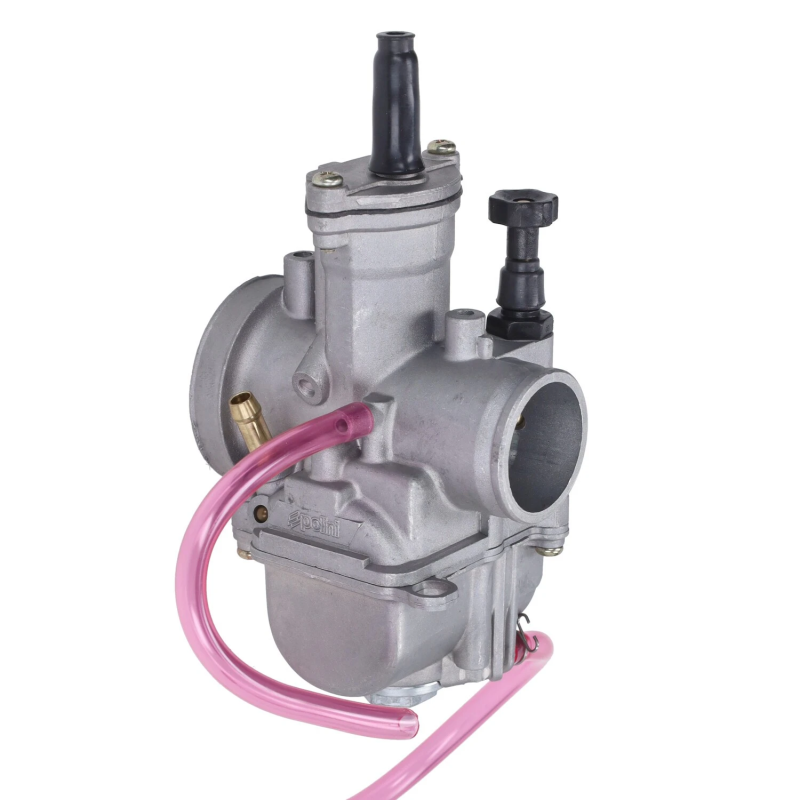

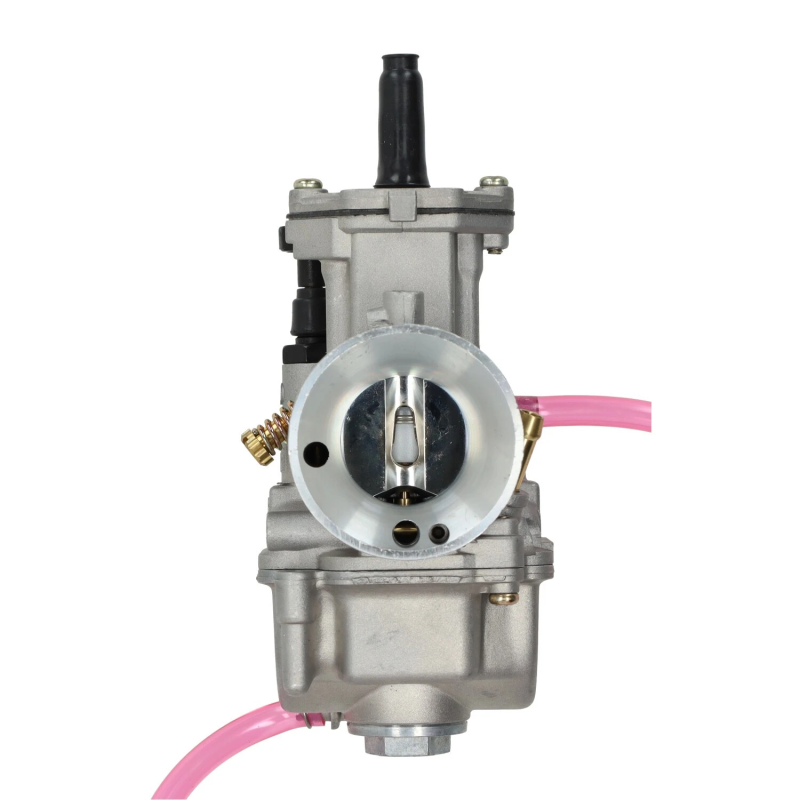

Genuine Polini PWK 28mm Carburetor Manual Choke 201.0168

The genuine Polini PWK 28mm carburetor with manual choke is a high-performance carburetor designed for powerful and heavily tuned 2-stroke scooters, mopeds and geared motorcycles. Based on the proven PWK design, it is intended for engine configurations where maximum airflow and performance are required.

Its 28 mm venturi allows the engine to process a large volume of air and fuel, making it ideal for racing and high-performance engine builds. The D-slide throttle valve provides crisp throttle response, precise throttle control and stable fuel metering throughout the RPM range.

This version features a manual choke, a 34.8 mm slip-fit intake manifold connection and a 48.8 mm air filter connection. The carburetor is equipped with a fuel inlet and has no oil or vacuum connection.

This carburetor uses Keihin PWK hexagonal M5 main jets. Browse our range of Keihin, OKO and PWK main jets. For a selection of different jet sizes, view our PWK main jet sets.

The 34.8 mm intake connection is compatible with the following 35 mm Polini intake manifolds:

• Minarelli Horizontal 2-stroke: Polini 35 mm rotating intake manifold for Horizontal Minarelli
• Piaggio 50-180cc 2-stroke: Polini 35 mm rotating intake manifold for Piaggio 2-stroke
• Derbi, Minarelli AM6, Honda MT, MB and MTX: Polini 35 mm rotating intake manifold for Derbi and AM6

Specifications

• Brand: Polini
• Genuine Polini carburetor
• Genuine Polini part number: 201.0168
• GTIN: 8054705051579
• Model: PWK
• Engine type: 2-stroke
• Venturi: 28 mm
• Manual choke
• Slip-fit intake connection
• Intake manifold connection: 34.8 mm
• Air filter connection: 48.8 mm
• D-Slide throttle valve
• Needle: 28
• Main jet: 118
• Idle jet: 45
• Main jet type: Keihin PWK hexagonal M5
• Fuel inlet
• No oil connection
• No vacuum connection

Polini is one of the world's leading manufacturers of performance parts for scooters, mopeds and motorcycles. The PWK series is renowned for its excellent tuning capabilities, crisp throttle response and reliable performance in sporty and high-performance engine builds.
