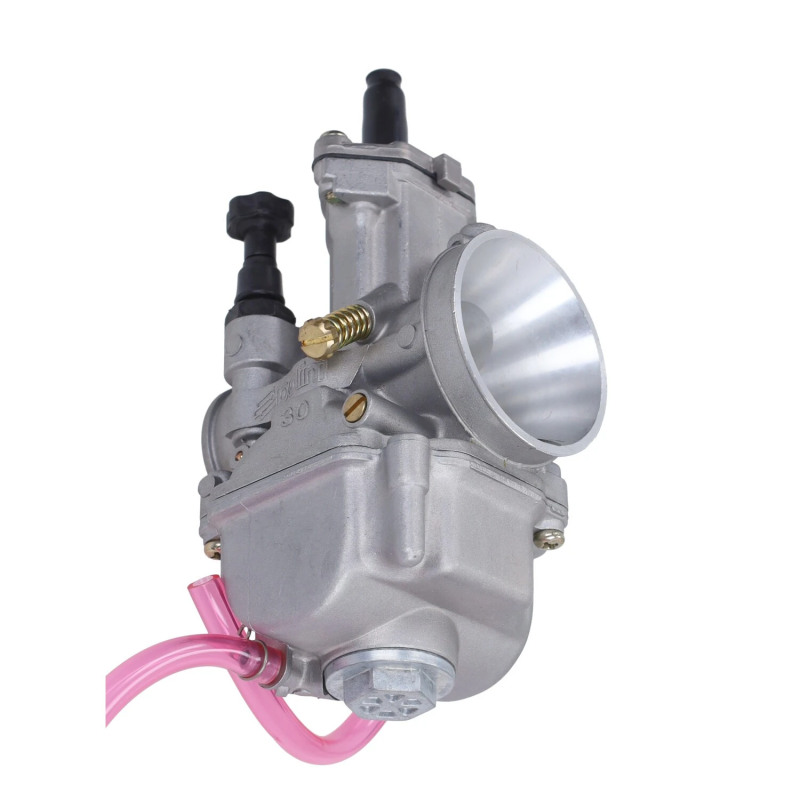

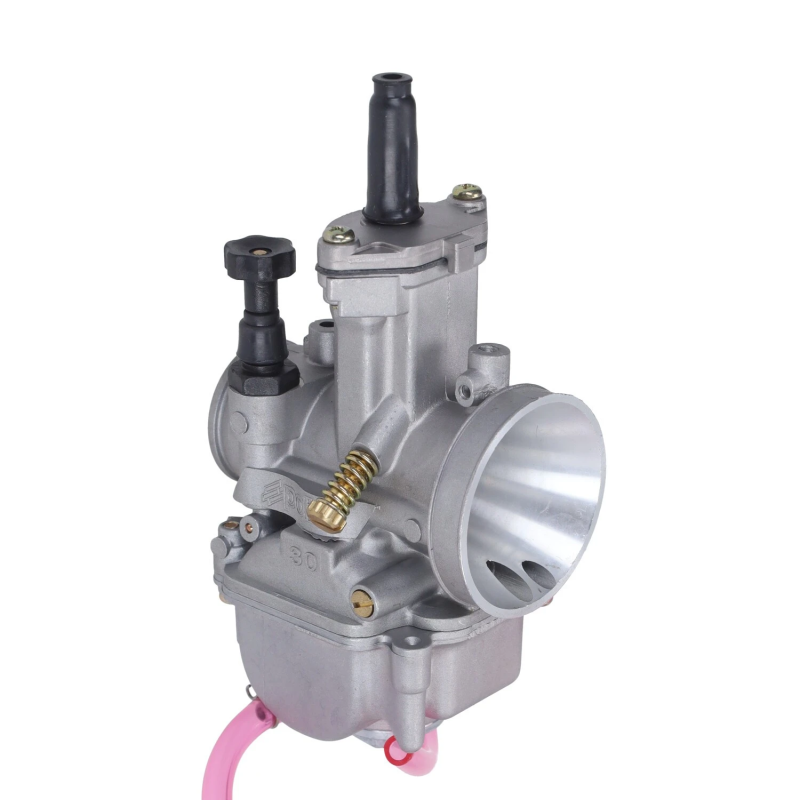

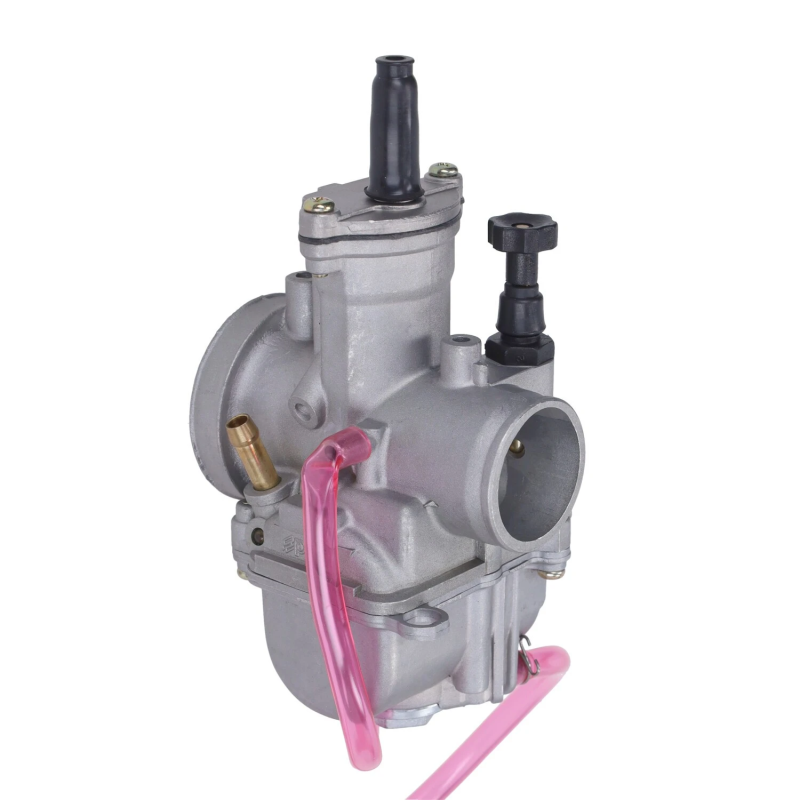

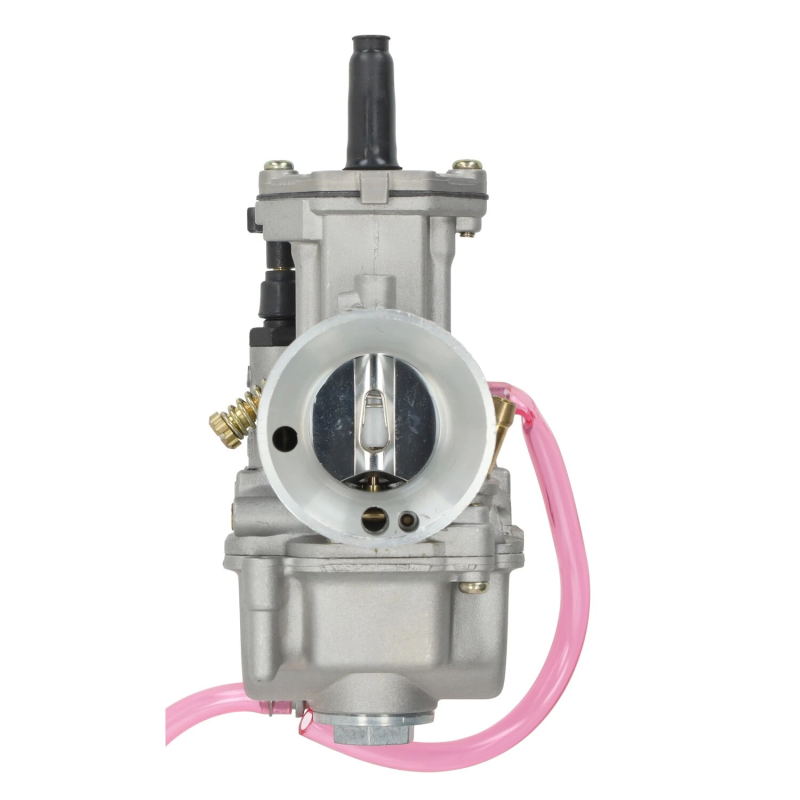

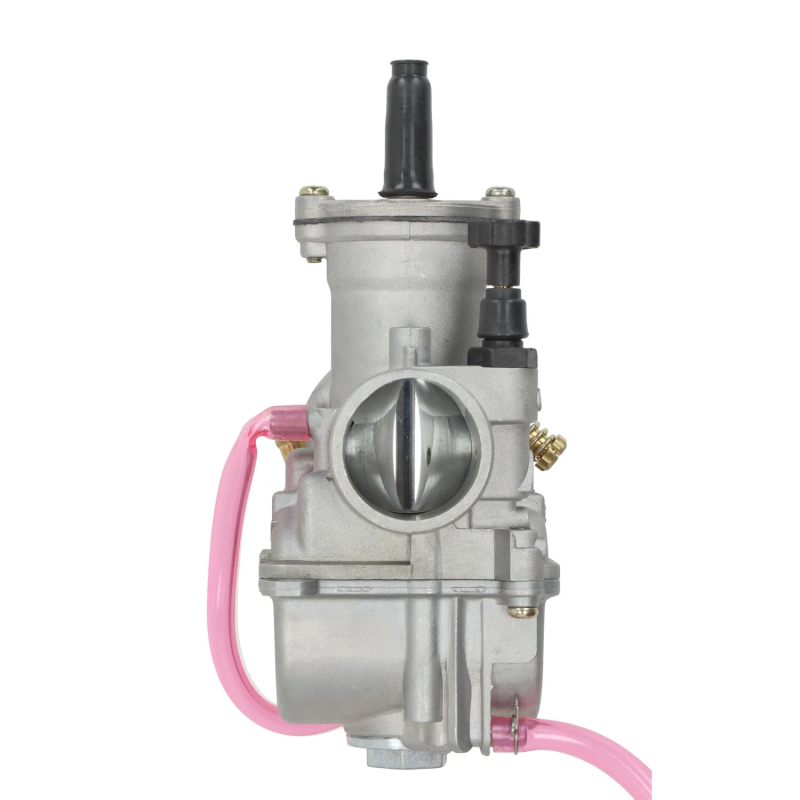

Genuine Polini PWK 30mm Carburetor Manual Choke 201.0169

The genuine Polini PWK 30mm carburetor with manual choke is an extra-large performance carburetor for heavily tuned 2-stroke scooters, mopeds and geared motorcycles. Its large 30 mm venturi allows the engine to process a high volume of air and fuel, making it ideal for racing and high-performance setups where maximum power at high RPM is required.

The carburetor features a D-slide throttle valve. This design promotes efficient airflow, crisp throttle response and stable fuel metering at different throttle positions. As a result, the engine responds accurately to throttle input and the carburetor can be tuned to match the cylinder, exhaust, ignition and air filter setup.

This version features a manual choke, a 34.8 mm slip-fit intake manifold connection and a 48.8 mm air filter connection. The carburetor is equipped with a fuel inlet and has no oil or vacuum connection.

The standard setup consists of a size 135 main jet, a size 45 idle jet and a type 30 needle. This carburetor uses Keihin PWK hexagonal M5 main jets. Browse our range of Keihin, OKO and PWK main jets. For a selection of different jet sizes, view our PWK main jet sets.

The 34.8 mm intake connection is compatible with the following 35 mm Polini intake manifolds:

• Minarelli horizontal 2-stroke: Polini 35 mm rotating intake manifold for horizontal Minarelli
• Piaggio 50-180cc 2-stroke: Polini 35 mm rotating intake manifold for Piaggio 2-stroke
• Derbi, Minarelli AM6, Honda MT, MB and MTX: Polini 35 mm rotating intake manifold for Derbi, AM6 and Honda

Specifications

• Brand: Polini
• Genuine Polini carburetor
• Article number: 201.0169
• Manufacturer part number: 201.0169
• GTIN: 8054705051586
• Model: PWK
• Engine type: 2-stroke
• Venturi: 30 mm
• Choke operation: Manual choke
• Intake connection: Slip-fit
• Intake manifold connection: 34.8 mm
• Air filter connection: 48.8 mm
• Throttle valve type: D-Slide
• Needle type: 30
• Main jet: 135
• Idle jet: 45
• Main jet type: Keihin hexagonal M5 (PWK/CP)
• Fuel inlet
• No oil connection
• No vacuum connection

Polini is an Italian manufacturer known worldwide for high-quality racing and tuning components for 2-stroke engines. The Polini PWK range combines technical precision, extensive tuning options and crisp throttle response. This 30 mm version is especially suitable for powerful engine builds requiring high airflow and fuel delivery.
