Gilardoni / Italkit Racing 74cc 48mm Cylinder Kit – Minarelli AM5 / AM6 – Aluminium Nicasil

The Gilardoni / Italkit Racing 74cc cylinder kit is a high-performance upgrade for Minarelli AM5 and AM6 2-stroke engines. With a 48mm bore and standard stroke, this kit delivers approximately 74cc displacement.

This cylinder can be installed without crankcase modification, making it an ideal performance upgrade without major engine work.

Manufactured from aluminium with Nicasil coating for excellent heat dissipation and durability. Features 2 booster ports for improved cylinder filling and strong performance throughout the rev range.

Technical specifications:

• Brand: Gilardoni / Italkit
• Original Italkit number: CK.44.761.GR2
• Displacement: 74cc
• Bore: 48mm
• Stroke: Standard
• Material: Aluminium / Nicasil
• Wrist pin: 12mm (standard)
• Booster ports: 2
• Inner head: Separate insert head
• Fits: Minarelli AM5 & AM6

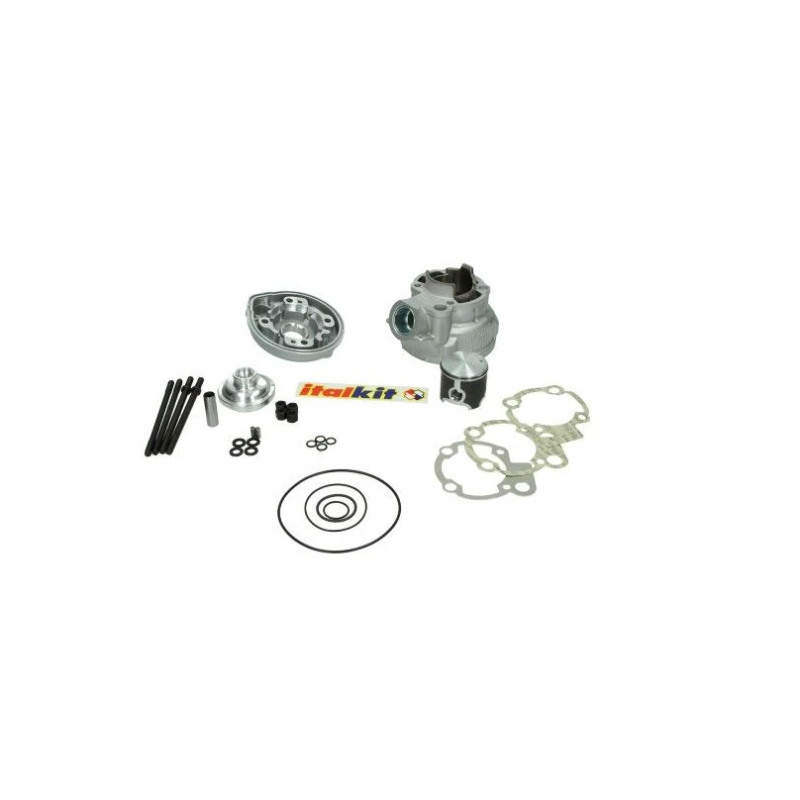

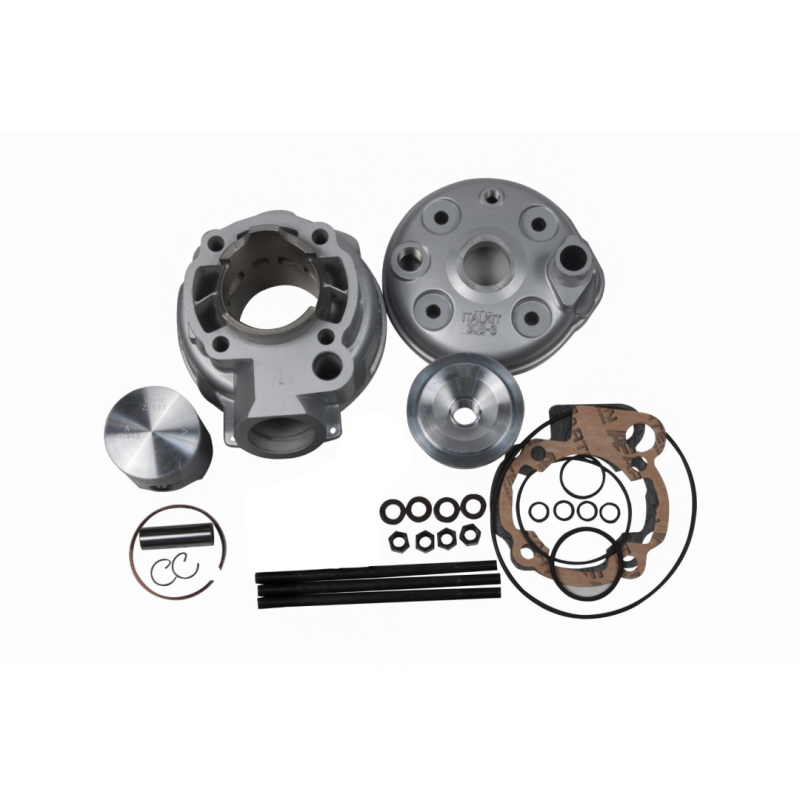

Supplied complete with:

• Cylinder
• 2-piece cylinder head
• Piston (12mm pin)
• Piston ring
• Wrist pin
• Wrist pin clips
• Gasket set
• Stud kit
• Needle bearing

Known for its strong performance and high-quality finish, this Italkit Racing cylinder is ideal for sporty street and track applications.
