Malossi MHR 50cc 40mm Cylinder Kit Pin 10 – Minarelli Horizontal LC

The Malossi MHR 50cc 40mm cylinder kit is a high-end racing cylinder designed for Minarelli horizontal liquid-cooled (LC) 2-stroke engines. This MHR version is developed for competition use and maximum performance within the 50cc class.

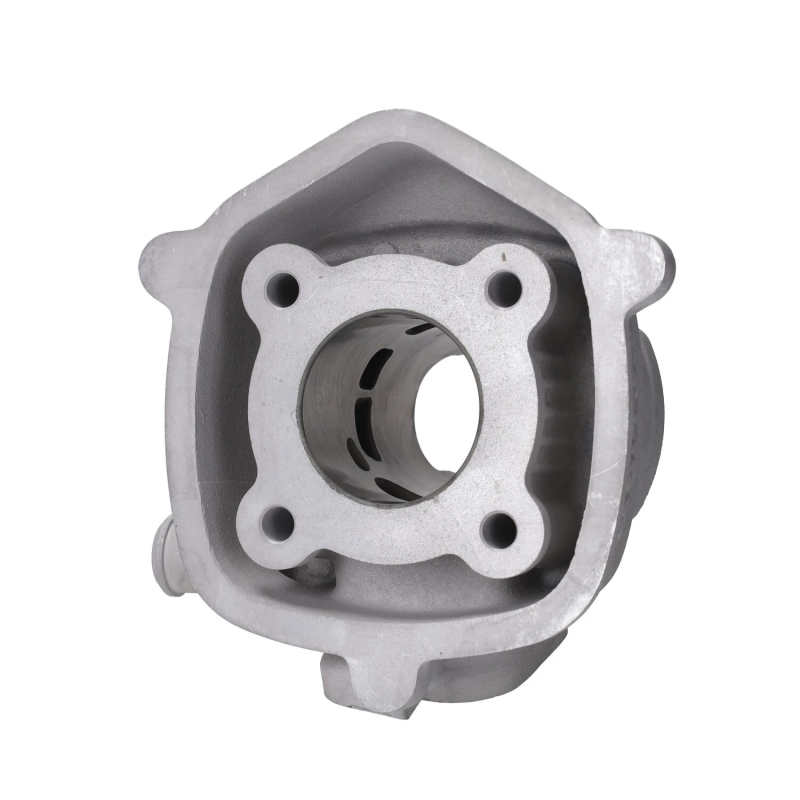

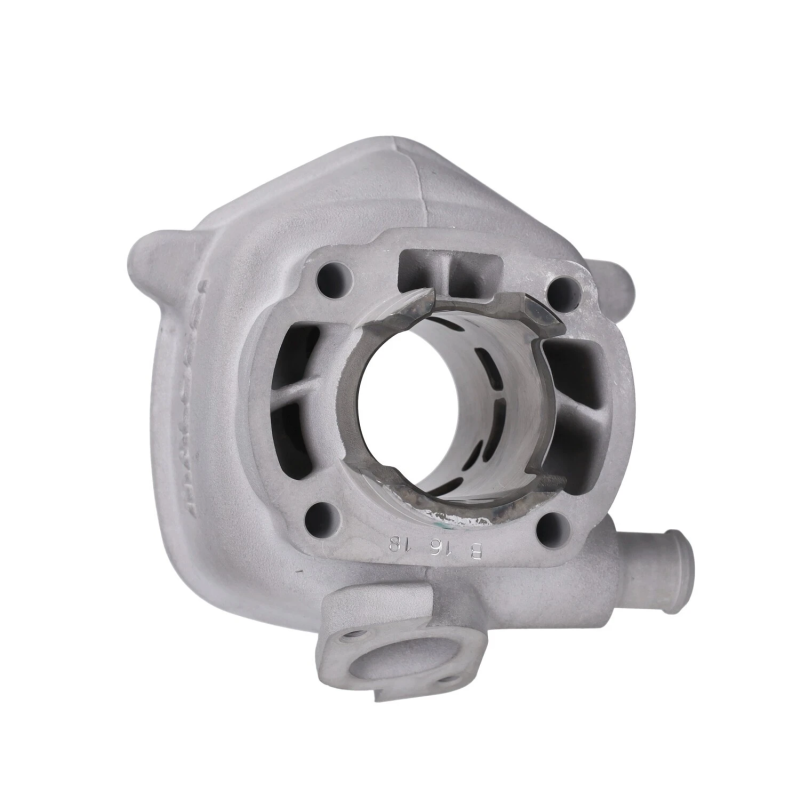

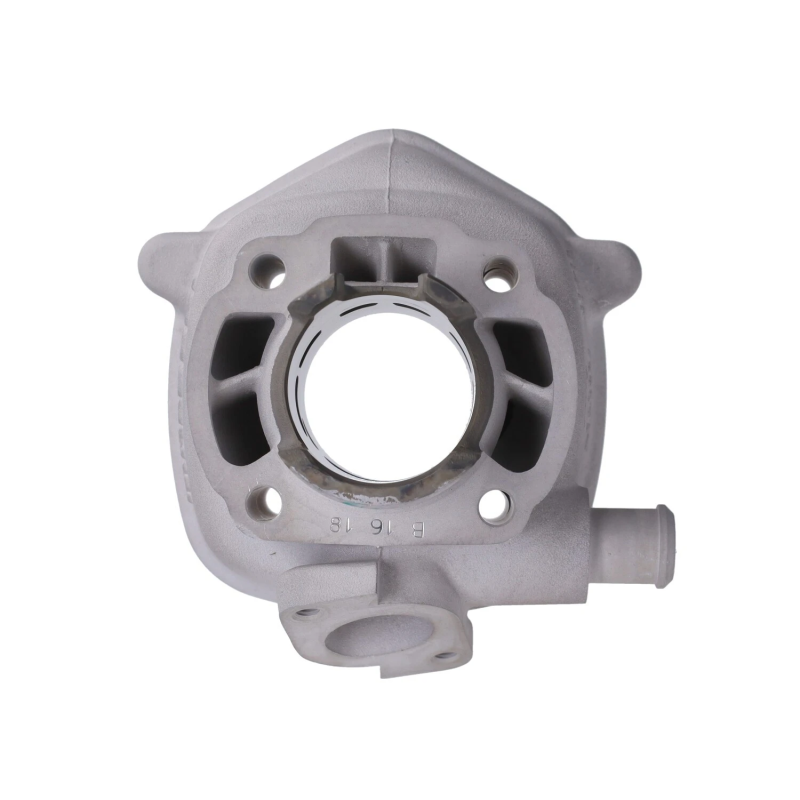

The cylinder is manufactured from a special aluminium alloy with high silicon and titanium content, providing exceptional strength and heat resistance. The inner bore features a Nicasil coating (silicon carbide on nickel matrix) for extreme hardness and outstanding wear resistance.

With a 40 mm bore, the kit maintains 50cc displacement but delivers significantly higher performance thanks to optimized port and exhaust timing.

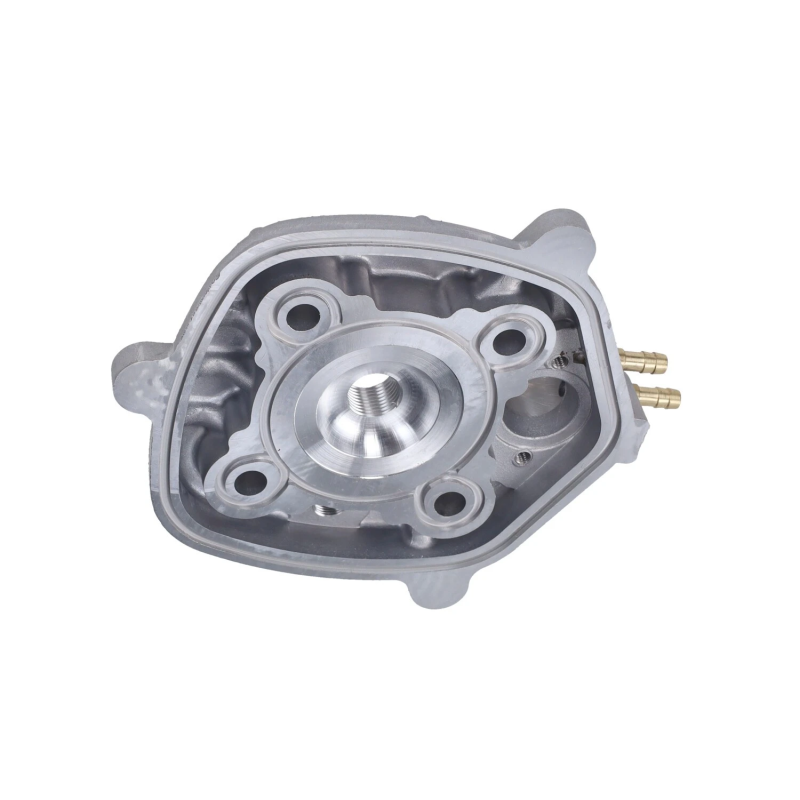

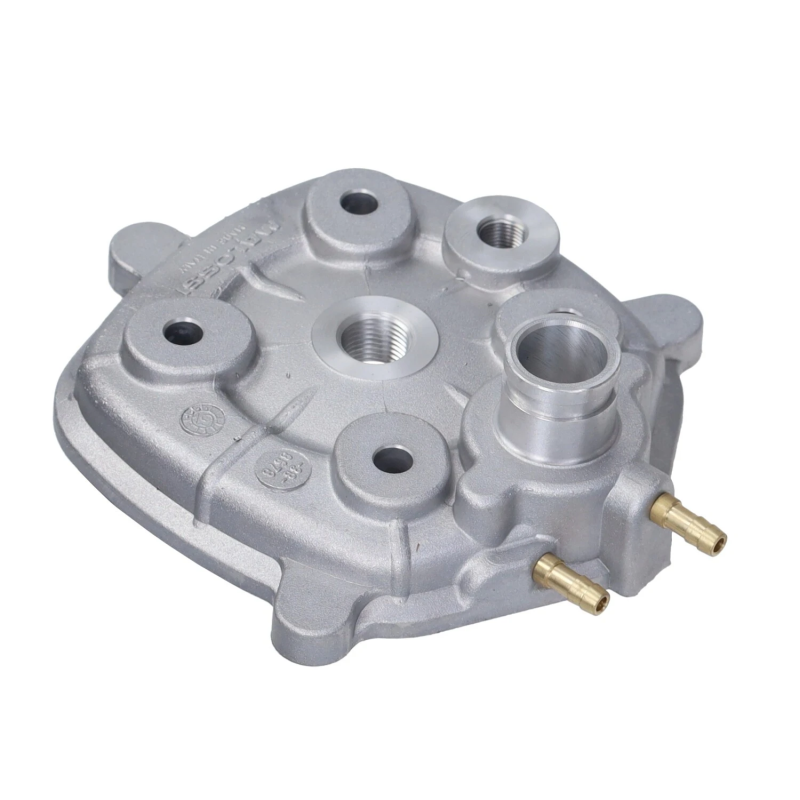

The included MHR cylinder head is made from a high heat-exchange aluminium alloy. The combustion chamber has been completely redesigned to achieve a high compression ratio and strong turbulence.

The piston is produced from a special aluminium alloy and features a graphite coating for reduced friction. It uses a 1 mm hard chrome plated piston ring for reliable sealing at high RPM.

Technical specifications:

• Brand: Malossi
• Series: MHR
• Original Malossi number: 31 8559
• Displacement: 50cc
• Bore: 40 mm
• Wrist pin: 10 mm
• Material: Aluminium with Nicasil coating
• Cooling: Liquid cooled (LC)
• Piston ring: 1 mm hard chrome plated
• Tuning level: High-end Race
• Engine type: Minarelli horizontal 2-stroke LC

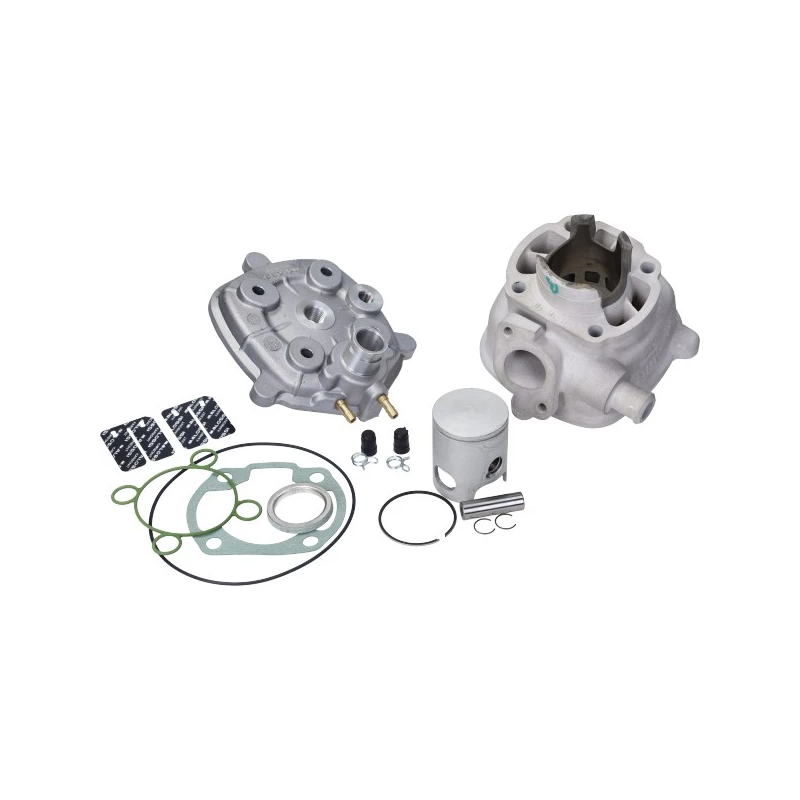

Supplied including:

• 40mm MHR aluminium cylinder
• MHR cylinder head
• Gasket set
• Piston (10mm wrist pin)
• Piston ring
• Wrist pin
• 2x Wrist pin clips
• Carbon reed petals for standard reed block

Spare parts:

Gasket set:

Malossi Minarelli LC 50-70cc Gasket Set

Piston:

Malossi MHR 40mm A P10 Minarelli Piston

Also known as Malossi MHR 50cc Minarelli LC cylinder, Malossi 40mm pin 10 racing cylinder or MHR 50cc aluminium Minarelli horizontal kit.
