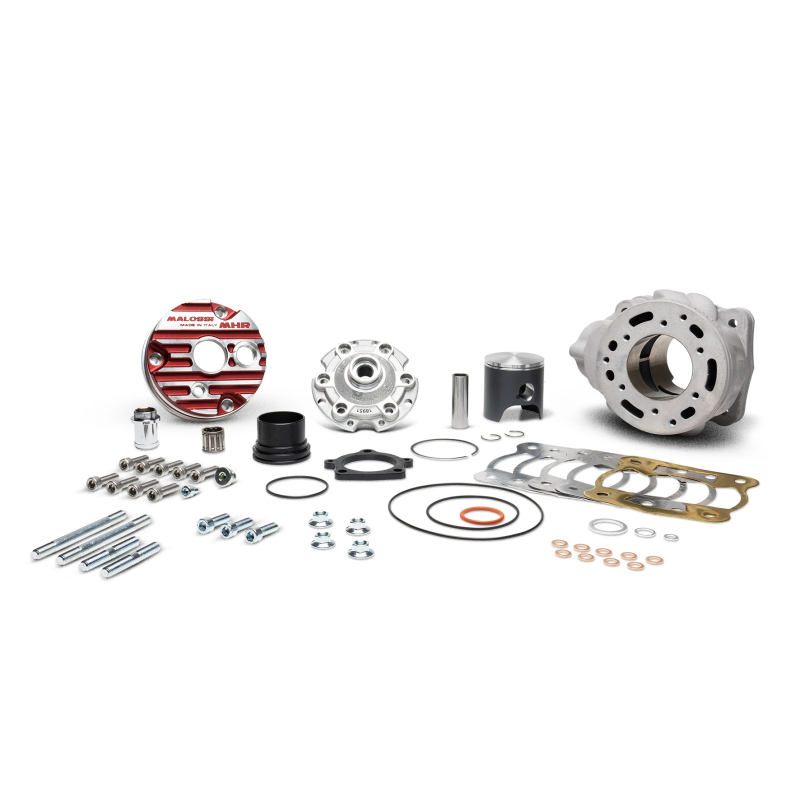

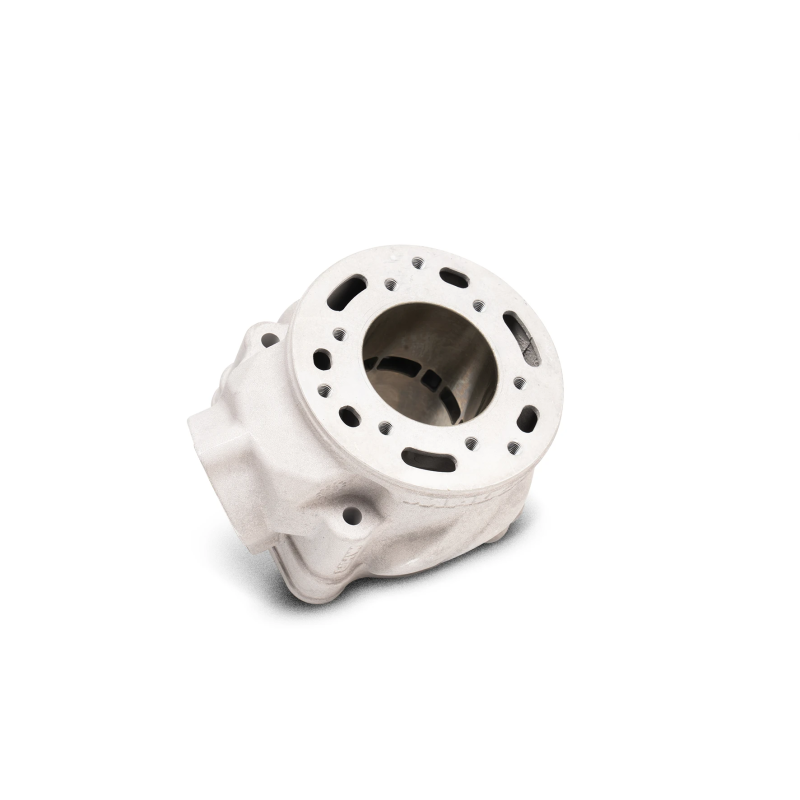

Malossi MHR Testa Rossa 100cc Ø52mm Cylinder Kit – Flanged Mount (RC-One / C-One)

The Malossi MHR Testa Rossa 100cc Ø52mm cylinder kit is the most powerful thermal unit ever made by Malossi, delivering over 32 HP at 14,000 RPM. Designed exclusively for flanged-mount RC-One and C-One engine cases, this is a true high-end racing component.

Key features:

• 7 transfer ports with additional boosters opposite the exhaust

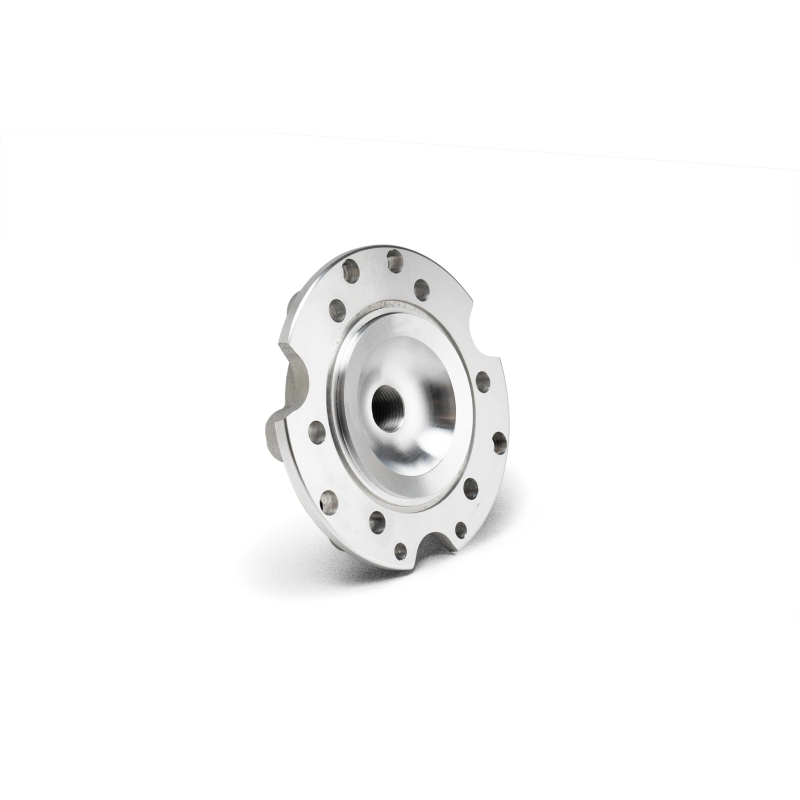

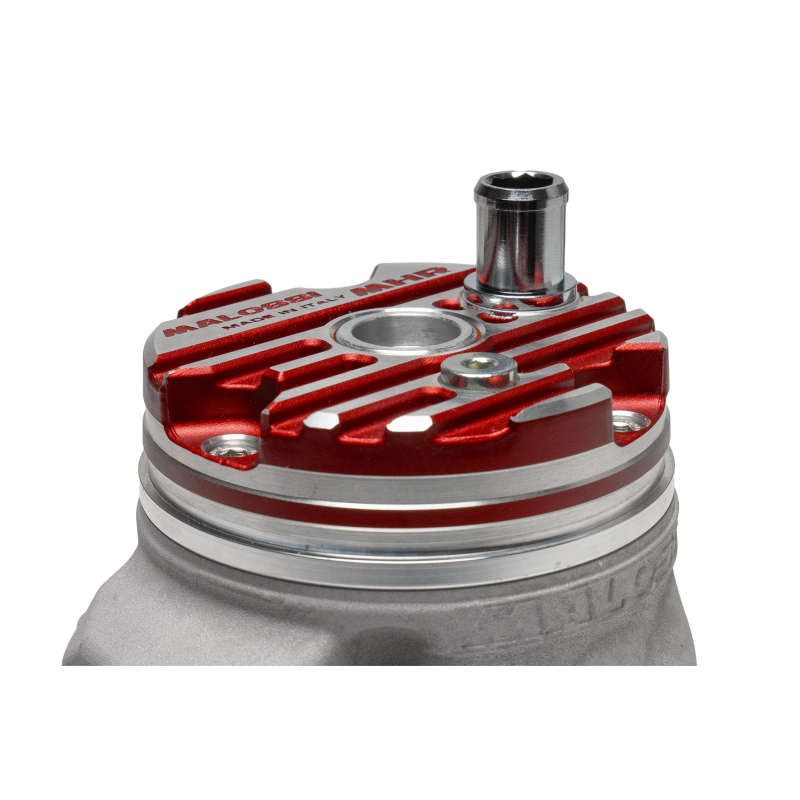

• Close-deck structure with modular cylinder head
• Bore: Ø52 mm – requires 47 mm stroke and 100 mm connecting rod
• Custom flange exhaust port with O-ring seal – no leaks

Installation notes:

• Crankcase machining required to fit long stroke crankshaft and rod
• Transfer ports need to be matched for full performance

This kit ensures reduced piston/bearing load, minimized friction, and less vibration/noise – resulting in better efficiency. A 30–34 mm carburetor and Malossi crankshaft (100 mm rod) are strongly recommended for optimal performance.

Technical specifications:

• Cooling: Liquid-cooled (H2O)
• Material: Aluminum
• Bore: Ø52 mm
• Stroke: 47 mm
• Rod length: 100 mm
• Displacement: 100 cc
• Mounting type: Flanged (RC-One / C-One only)
