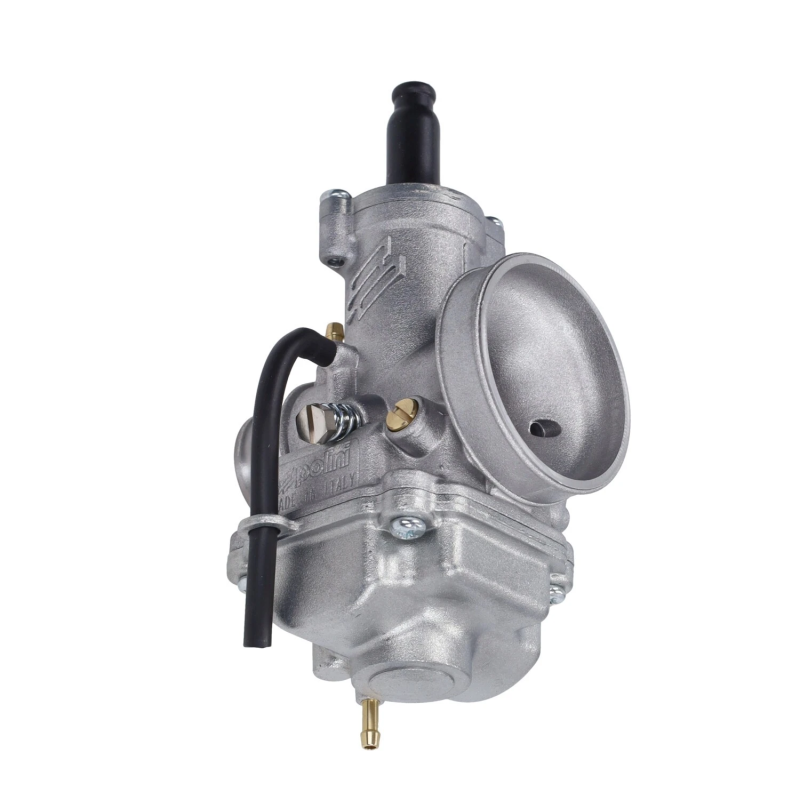

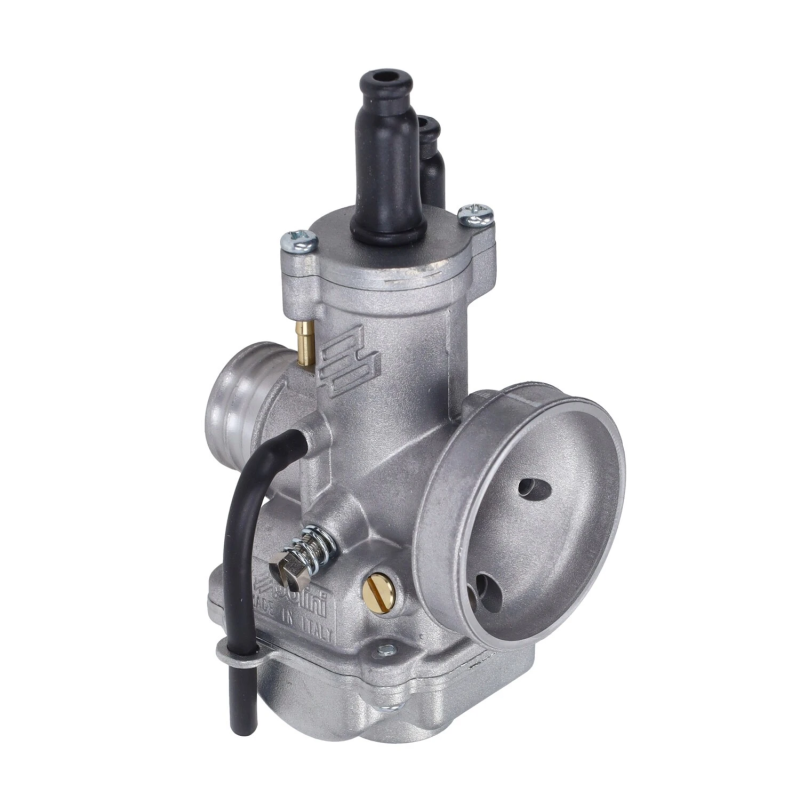

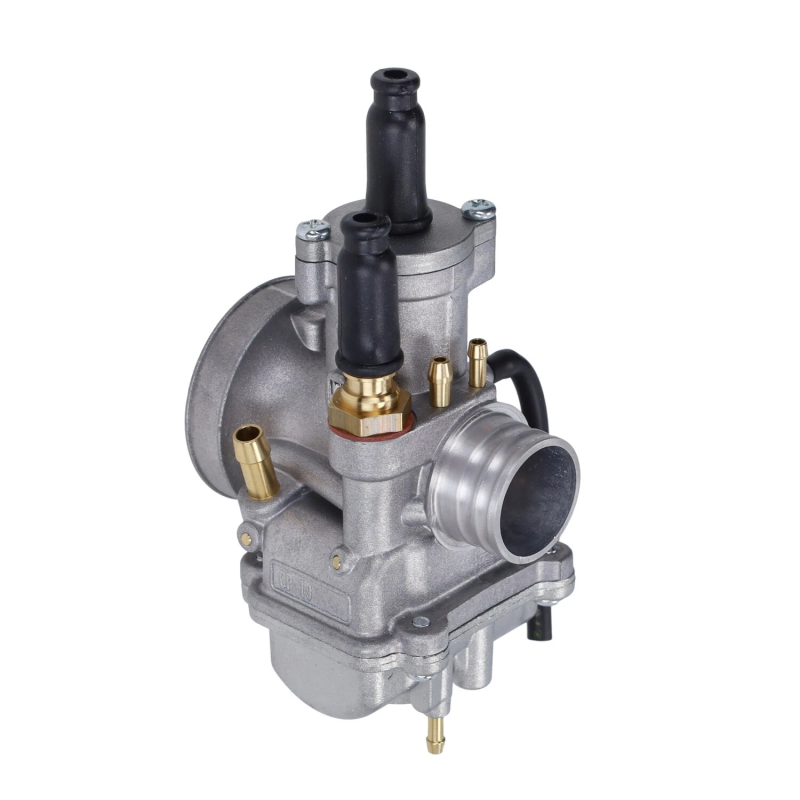

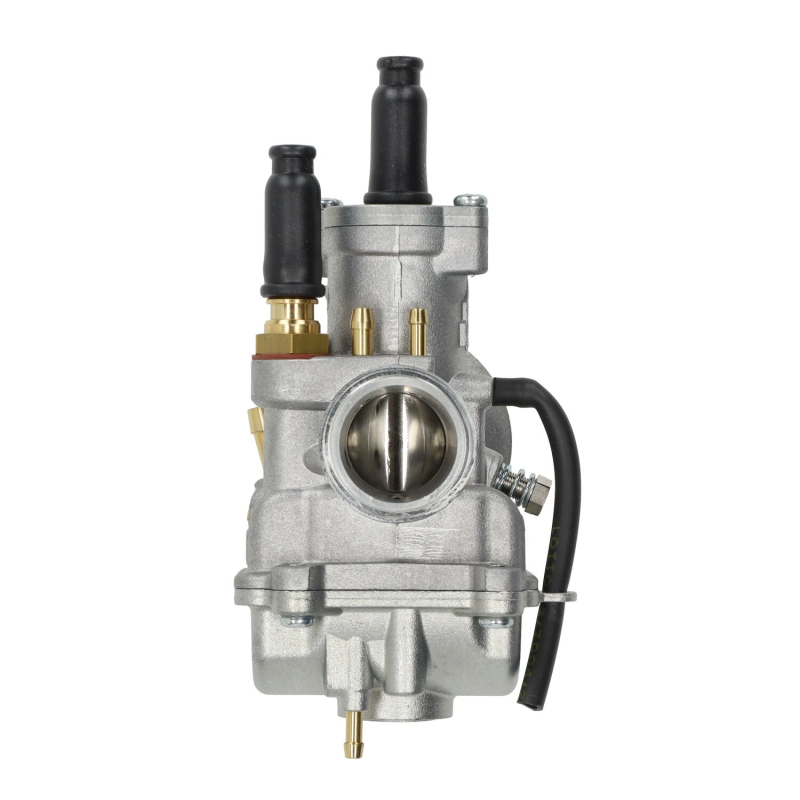

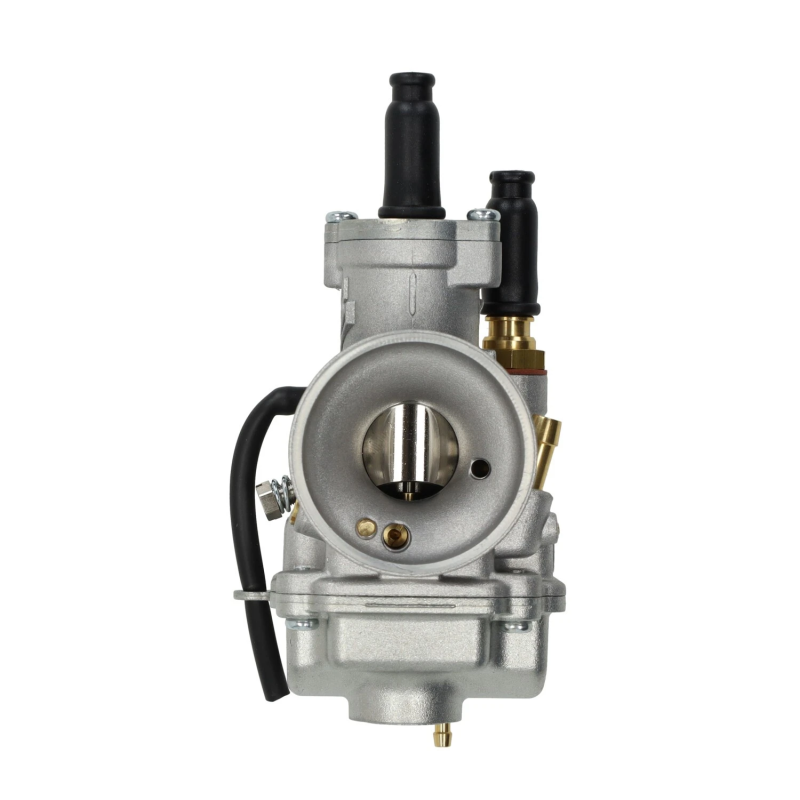

Polini CP 19mm Carburetor Cable Choke Spigot Mount 201.1901

The genuine Polini CP 19mm carburetor with cable choke, part number 201.1901, has been fully designed and manufactured by Polini for sporty 2-stroke scooters, mopeds and geared motorcycles. Its short body, low weight and precise tuning options make it highly suitable for sporty road setups and mild engine tuning.

With its 19 mm venturi, this Polini CP carburetor provides a good balance between torque, airflow and crisp throttle response. The air inlet is positioned centrally in front of the venturi, helping to maintain efficient airflow at every throttle slide position. This supports stable fuel atomisation and predictable engine response.

This version features a round throttle slide and a cable-operated choke, allowing the choke to be operated remotely with a suitable choke cable. The carburetor also has connections for fuel, vacuum and oil.

The carburetor has a 25 mm spigot connection and can be installed with a suitable spigot-type intake manifold. The air filter connection has a diameter of 46 mm.

Compatible Polini intake manifolds:

• Derbi / AM6 / Honda MT / MB / MTX: Polini rotating 25 mm intake manifold
• Horizontal Minarelli 2-stroke: Polini rotating 25 mm intake manifold
• Piaggio 50-180cc 2-stroke: Polini rotating 25 mm intake manifold

Compatible Polini CP air filters:

• Straight: Polini CP straight 46 mm power filter
• 30° bend: Polini CP 46 mm power filter with 30° bend
• 90° bend: Polini CP 46 mm power filter with 90° bend

This carburetor uses Keihin M5 hexagonal PWK-type main jets. It is supplied with a size 90 main jet and a size 40 pilot jet. Browse the range of Keihin, OKO and PWK M5 hex main jets.

Polini checks the CP carburetors at several points during production, including float needle sealing and the float level. This provides a reliable starting point, but the carburetor should always be tuned to match the cylinder, exhaust, ignition and air filter configuration.

Specifications

• Brand: Polini
• Part number: 201.1901
• GTIN: 8054705051739
• Engine type: 2-stroke
• Venturi: 19 mm
• Choke operation: Cable choke
• Throttle slide type: Round
• Intake mounting: Spigot mount
• Intake connection: 25 mm
• Air filter connection: 46 mm
• Fuel connection: Yes
• Vacuum connection: Yes
• Oil connection: Yes
• Needle type: 14/22
• Main jet: 90
• Pilot jet: 40
• Jet type: Keihin M5 hex (PWK)

The Polini CP 19mm carburetor with cable choke is an excellent choice for sporty 2-stroke engines requiring compact dimensions, easy operation and accurate tuning.
