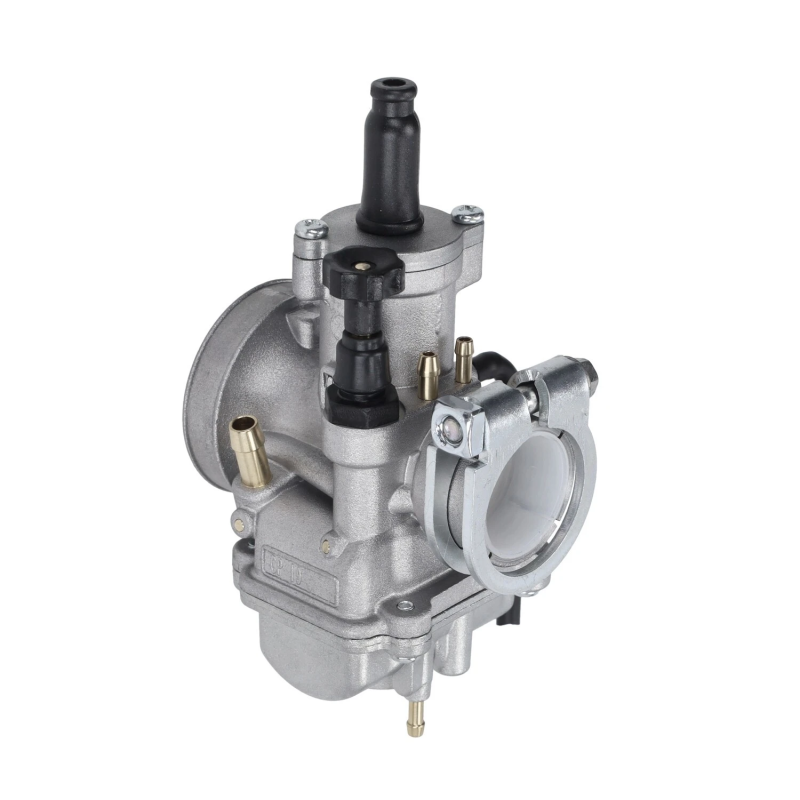

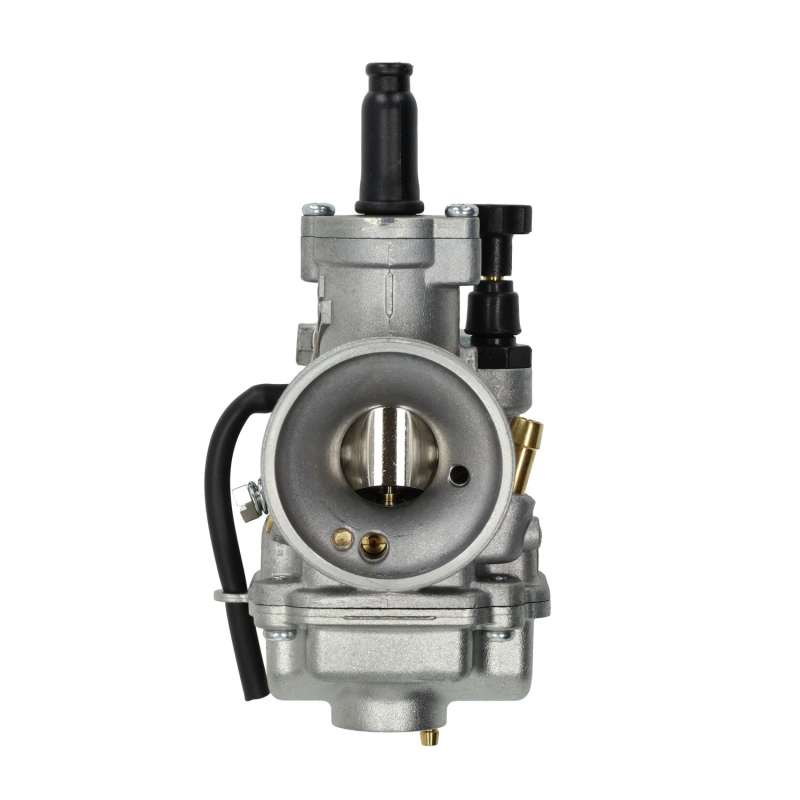

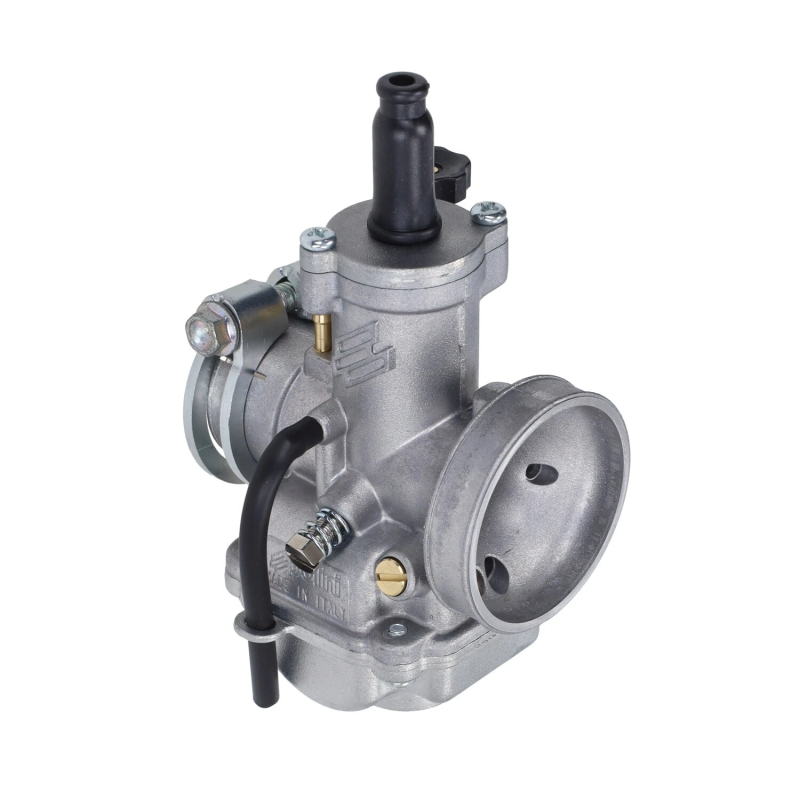

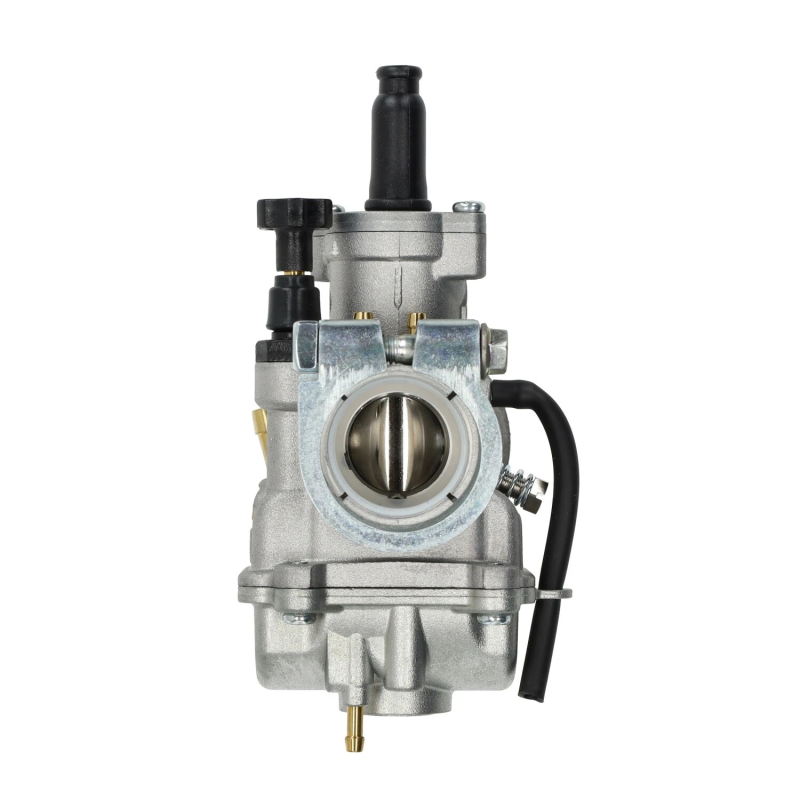

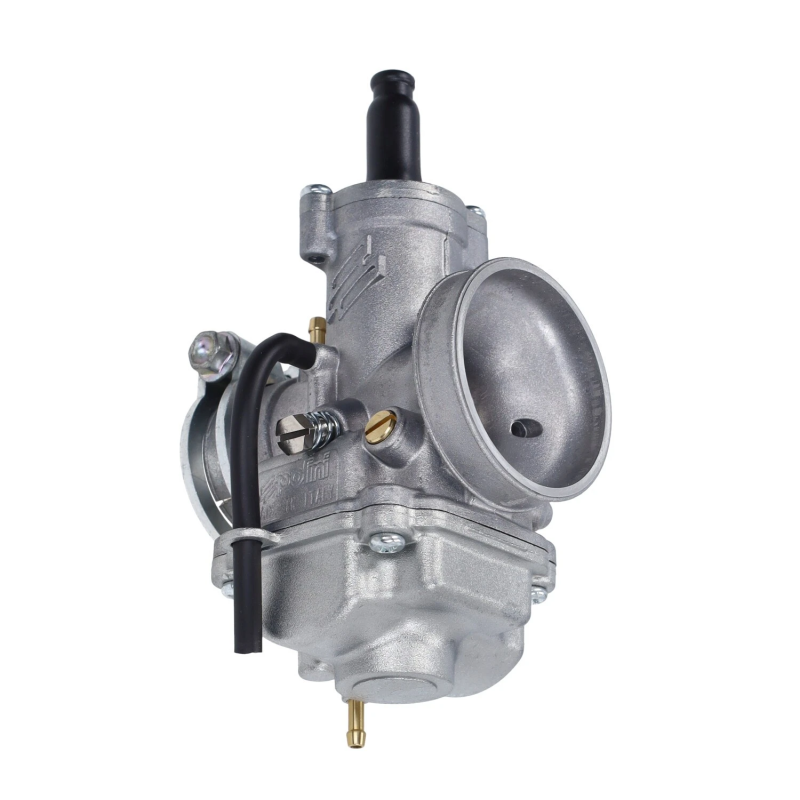

Polini CP 19mm Carburetor Manual Choke Clamp Mount 201.1904

The genuine Polini CP 19mm carburetor with manual choke, part number 201.1904, has been fully designed and manufactured by Polini for sporty 2-stroke scooters, mopeds and geared motorcycles. Its compact aluminium construction, low weight and efficient airflow provide crisp throttle response and accurate fuel metering.

With its 19 mm venturi, this Polini CP carburetor is suitable for sporty and mildly tuned 2-stroke engine setups. The centrally positioned air inlet sits directly in front of the venturi, ensuring efficient airflow throughout the throttle range. This results in stable fuel atomisation, accurate mixture formation and predictable throttle response.

This version features a round throttle slide, a manual choke, and connections for fuel, vacuum and oil, making it suitable for a wide range of 2-stroke engine configurations.

The carburetor has a 24 mm clamp-on connection and can be used in combination with a suitable clamp-on intake manifold. The air filter connection has a diameter of 46 mm.

Compatible Polini CP air filters:

• Straight: Polini CP straight 46 mm power filter
• 30° bend: Polini CP 46 mm power filter with 30° bend
• 90° bend: Polini CP 46 mm power filter with 90° bend

This carburetor uses Keihin M5 hexagonal PWK-type main jets. It is supplied with a size 66 main jet and a size 42 pilot jet. Browse the range of Keihin, OKO and PWK M5 hex main jets.

Every Polini CP carburetor is factory checked for float needle sealing and correct float level. Final jetting should always be adjusted to suit the cylinder, exhaust, ignition and air filter configuration.

Specifications

• Brand: Polini
• Part number: 201.1904
• GTIN: 8054705051760
• Engine type: 2-stroke
• Venturi: 19 mm
• Choke operation: Manual choke
• Throttle slide type: Round
• Mounting type: Clamp Mount
• Intake connection: 24 mm
• Air filter connection: 46 mm
• Fuel connection: Yes
• Vacuum connection: Yes
• Oil connection: Yes
• Needle type: 14/22
• Main jet: 66
• Pilot jet: 42
• Jet type: Keihin M5 hex (PWK)

The Polini CP 19mm carburetor with manual choke is an excellent choice for sporty 2-stroke engines requiring compact dimensions, crisp throttle response and precise tuning.
