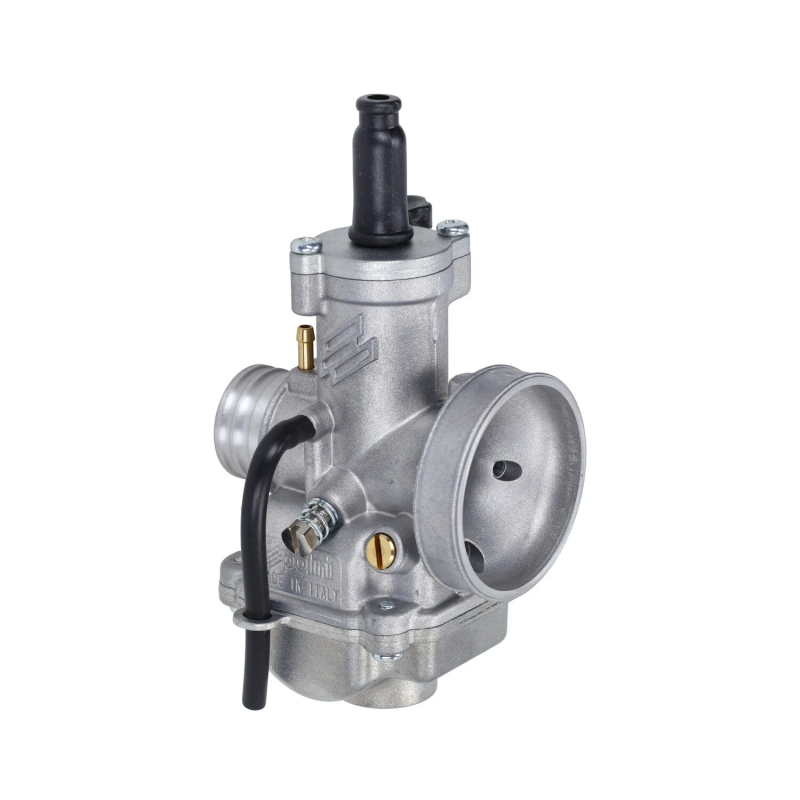

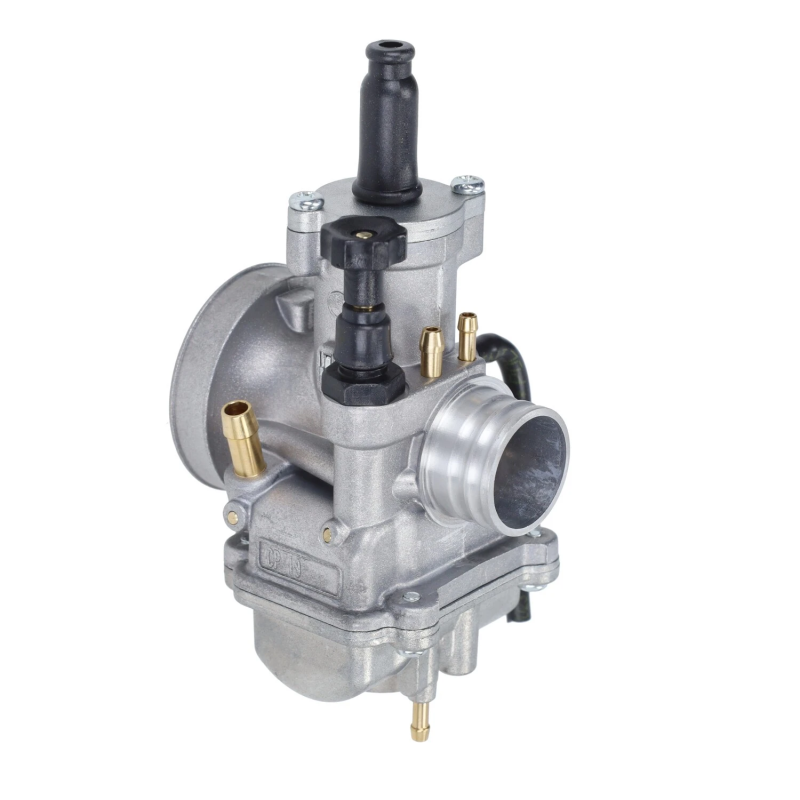

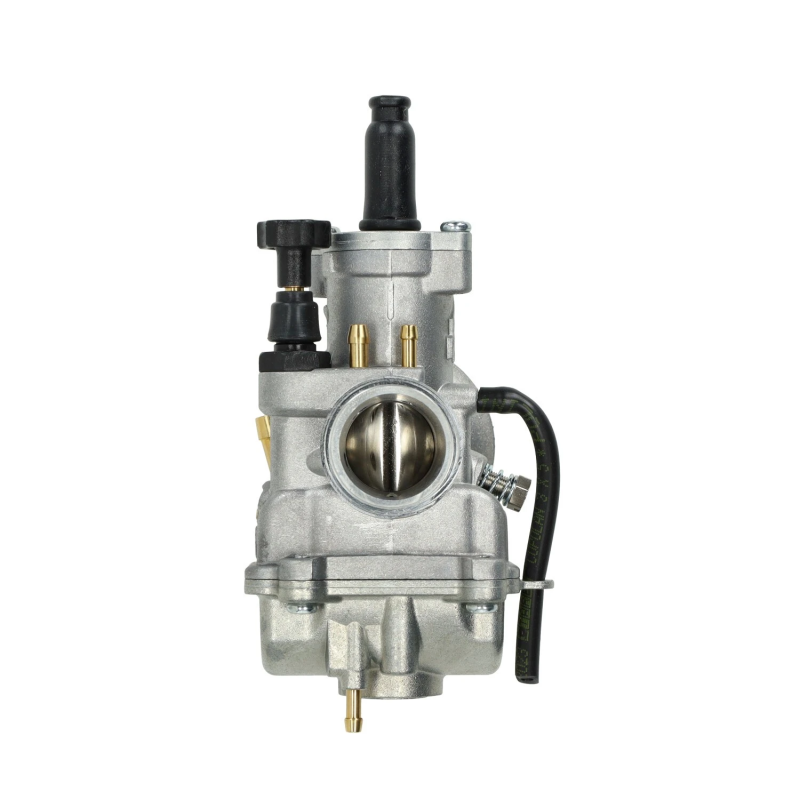

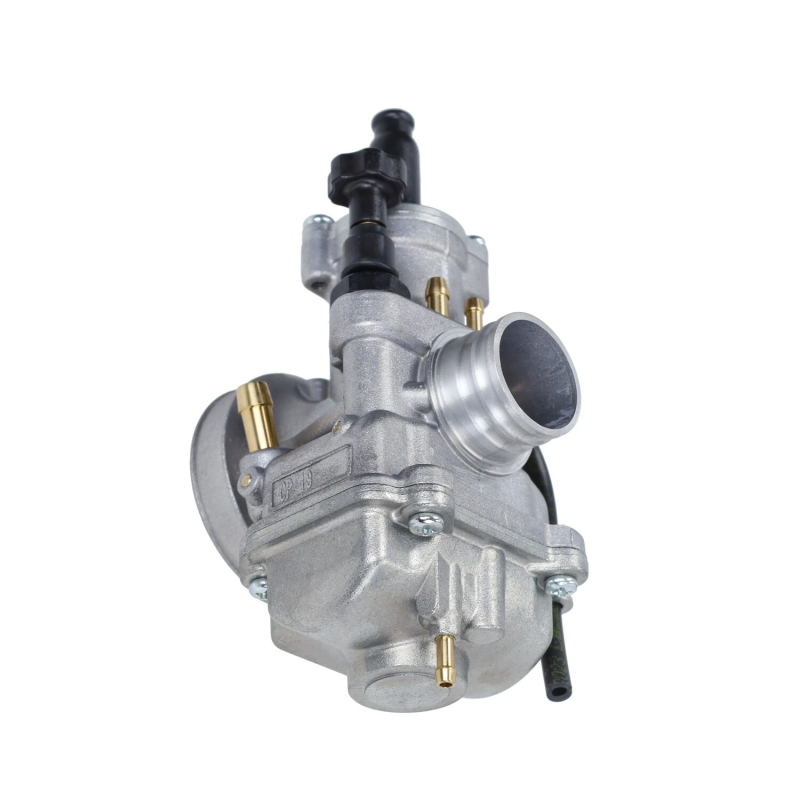

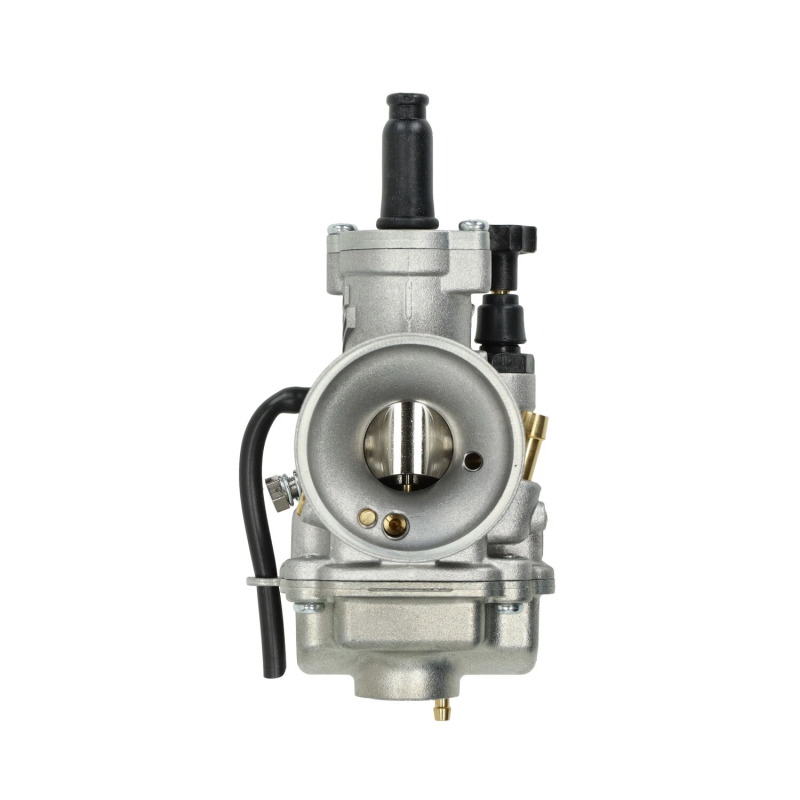

Polini CP 19mm Carburetor Manual Choke Spigot Mount 201.1900

The genuine Polini CP 19mm carburetor with manual choke (part number 201.1900) has been fully designed and manufactured by Polini for sporty and tuned 2-stroke scooters, mopeds and motorcycles. Thanks to its compact aluminium body, lightweight construction and excellent tuning characteristics, the Polini CP series has become one of the most popular carburetors for road and racing applications.

With its 19 mm venturi, this carburetor is ideal for sporty 50cc and 70cc engine setups. In our workshop, we almost exclusively fit Polini CP carburetors on engines up to approximately 70cc because they are easy to tune and consistently deliver excellent performance.

This version features a round slide, a manual choke, a fuel inlet and two additional ports that are factory capped. This allows the carburetor to be used with or without a vacuum connection and oil feed connection, depending on the engine setup.

The carburetor features a 25 mm spigot connection and a 46 mm air filter connection.

Compatible Polini intake manifolds:

• Derbi / AM6 / Honda MT / MB / MTX: Polini 25 mm rotating intake manifold
• Horizontal Minarelli: Polini 25 mm rotating intake manifold
• Piaggio 50-180cc 2-stroke: Polini 25 mm rotating intake manifold

Compatible air filters:

• Straight: Polini CP 46 mm straight air filter
• 30° bend: Polini CP 46 mm air filter with 30° bend
• 90° bend: Polini CP 46 mm air filter with 90° bend

The carburetor uses Keihin, OKO and PWK M5 hexagonal main jets, allowing precise tuning with a wide range of readily available jet sizes. Browse our range of Keihin, OKO and PWK main jets.

Specifications

• Brand: Polini
• Part number: 201.1900
• GTIN: 8054705051722
• Engine type: 2-stroke
• Venturi: 19 mm
• Choke: Manual choke
• Throttle slide: Round slide
• Mounting type: Spigot mount
• Intake connection: 25 mm
• Air filter connection: 46 mm
• Fuel inlet: Yes
• Vacuum connection: Optional (factory capped)
• Oil connection: Optional (factory capped)
• Needle type: 14/22
• Main jet: 90
• Pilot jet: 40
• Main jet type: Keihin M5 Hex (PWK)

The Polini CP 19mm is an excellent choice for sporty 50cc and 70cc 2-stroke engines, combining excellent throttle response, reliable performance and easy tuning.
