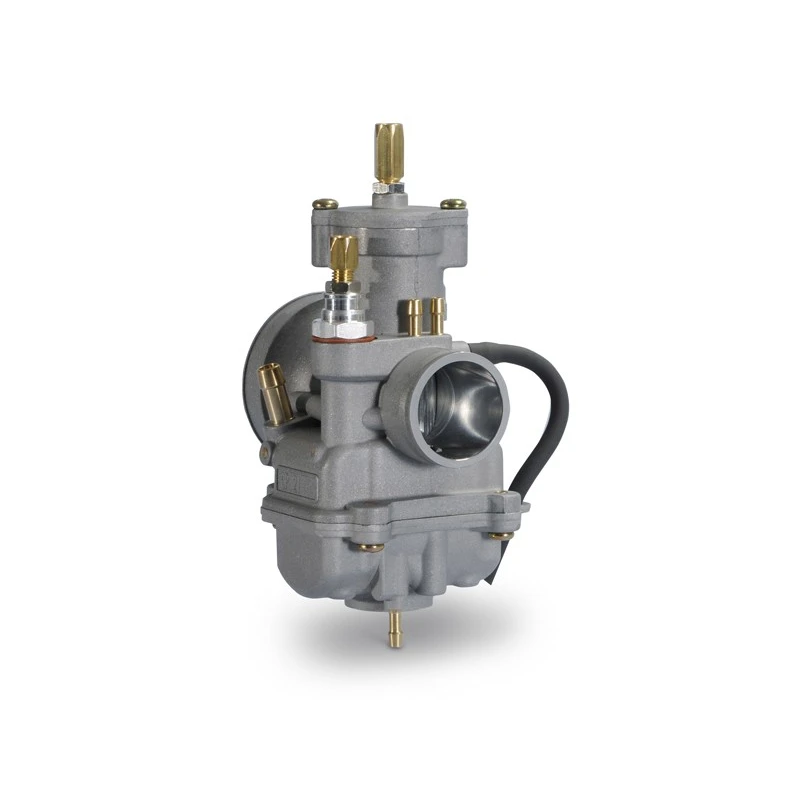

Polini CP 21mm Carburetor Cable Choke Spigot Mount 201.2101

The genuine Polini CP 21mm carburetor with cable choke, part number 201.2101, has been fully designed and manufactured by Polini for sporty and tuned 2-stroke scooters, mopeds and geared motorcycles. Its compact aluminium construction, low weight and efficient airflow provide crisp throttle response and accurate fuel metering.

With its 21 mm venturi, this Polini CP carburetor is suitable for powerful 2-stroke engines, including sporty 50cc and 70cc setups. The centrally positioned air inlet sits directly in front of the venturi, helping to maintain stable airflow at every throttle slide position. This results in consistent fuel atomisation and predictable engine response.

This version features a round throttle slide and a cable-operated choke, allowing remote choke operation with a suitable choke cable. The carburetor also has connections for fuel, vacuum and oil.

The carburetor has a 25 mm spigot connection and can be installed with a suitable spigot-type intake manifold. The air filter connection has a diameter of 46 mm.

Compatible Polini intake manifolds:

• Derbi / AM6 / Honda MT / MB / MTX: Polini rotating 25 mm intake manifold
• Horizontal Minarelli 2-stroke: Polini rotating 25 mm intake manifold
• Piaggio 50-180cc 2-stroke: Polini rotating 25 mm intake manifold

Compatible Polini CP air filters:

• Straight: Polini CP straight 46 mm power filter
• 30° bend: Polini CP 46 mm power filter with 30° bend
• 90° bend: Polini CP 46 mm power filter with 90° bend

This carburetor uses Keihin M5 hexagonal PWK-type main jets. It is supplied with a size 100 main jet and a size 40 pilot jet. Browse the range of Keihin, OKO and PWK M5 hex main jets.

Every Polini CP carburetor is factory checked for float needle sealing and correct float level. Final jetting should always be adjusted to suit the cylinder, exhaust, ignition and air filter configuration.

Specifications

• Brand: Polini
• Part number: 201.2101
• GTIN: 8054705051807
• Engine type: 2-stroke
• Venturi: 21 mm
• Choke operation: Cable choke
• Throttle slide type: Round
• Intake mounting: Spigot mount
• Intake connection: 25 mm
• Air filter connection: 46 mm
• Fuel connection: Yes
• Vacuum connection: Yes
• Oil connection: Yes
• Needle type: 14/22
• Main jet: 100
• Pilot jet: 40
• Jet type: Keihin M5 hex (PWK)

The Polini CP 21mm carburetor with cable choke is an excellent choice for powerful 2-stroke engines requiring compact dimensions, crisp throttle response and precise tuning.
