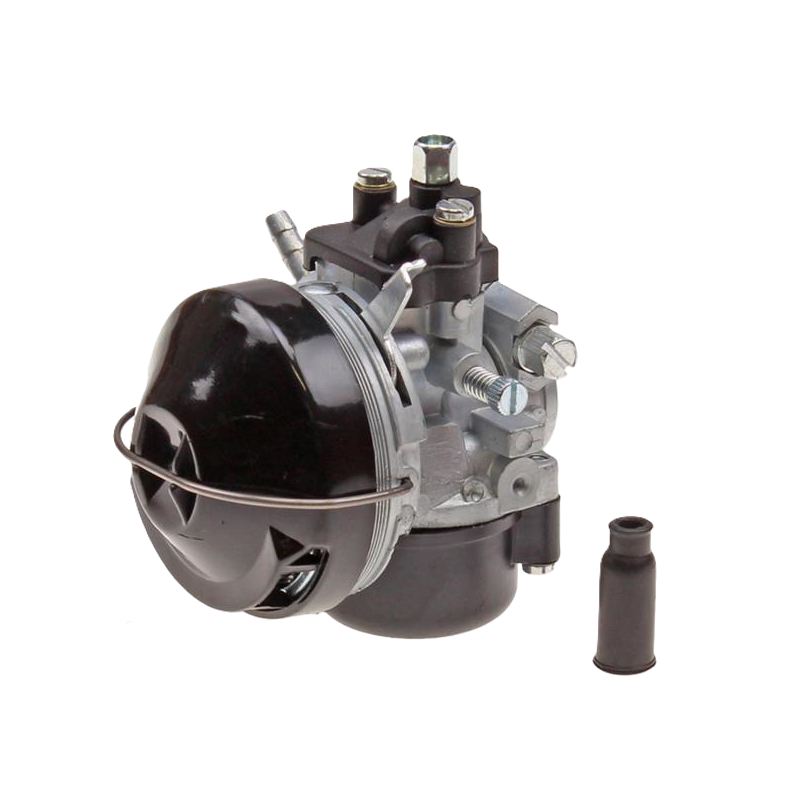

SP SHA 15/15 Aftermarket Carburetor Tomos A35 A52 Manual Choke

This SP SHA 15/15 carburetor is an affordable aftermarket alternative to the well-known Dellorto SHA carburetor. It is suitable for various Tomos A35 and A52 mopeds with reed valve engines and can be used as a replacement carburetor or for a sporty engine setup.

The carburetor features a 15 mm venturi and an easy-to-operate manual choke. Thanks to the compact SHA design, installation is straightforward while keeping the carburetor easily accessible for maintenance and tuning.

This version includes a filter mesh and protective cover. The intake connection has an outside diameter of 21 mm and is supplied with a reducing sleeve for a 19 mm intake manifold.

Do you have an 18 mm intake manifold? Then use the correct reducing sleeve:

21 mm to 18 mm reducing sleeve for Dellorto SHA carburetors

This carburetor uses Dellorto thin 5 mm main jets. The supplied blank jet must always be replaced with the correct size before use. View the compatible main jets here:

Dellorto thin 5 mm main jets

Features

• Brand: SP
• Model: SHA 15/15
• Aftermarket alternative to Dellorto SHA
• 15 mm venturi
• Suitable for Tomos A35 and A52 models
• Manual choke
• Includes filter mesh and protective cover
• 21 mm intake connection
• Includes 21 mm to 19 mm reducing sleeve
• 60 mm air filter connection
• Main jet type: Dellorto thin 5 mm
• Supplied with a blank main jet

Installation and tuning advice

• Always replace the supplied blank main jet with a suitable Dellorto 5 mm main jet.
• Select the correct jet size for your cylinder, exhaust, air filter and engine setup.
• When in doubt, start with a larger main jet and gradually work down to the correct size.
• Install the carburetor carefully and avoid overtightening the mounting clamp.
• Small dimensional differences may occur with aftermarket carburetors due to production tolerances.
• Always check for fuel leaks and air leaks after installation.

Suitable for models including

• Tomos A35
• Tomos A52
• Tomos Standard
• Tomos Classic
• Tomos Quadro
• Tomos Luxe
• Tomos Flexer
• Tomos Sport'R
• Tomos Pack'R
• Tomos Youngst'R
• Tomos Revival
• Tomos Wizz'rd
• Tomos Califone
• Tomos Roadie

This SHA 15/15 carburetor can also be used for various custom moped projects with a compatible SHA intake manifold. Always check the connection dimensions and available installation space before ordering.
