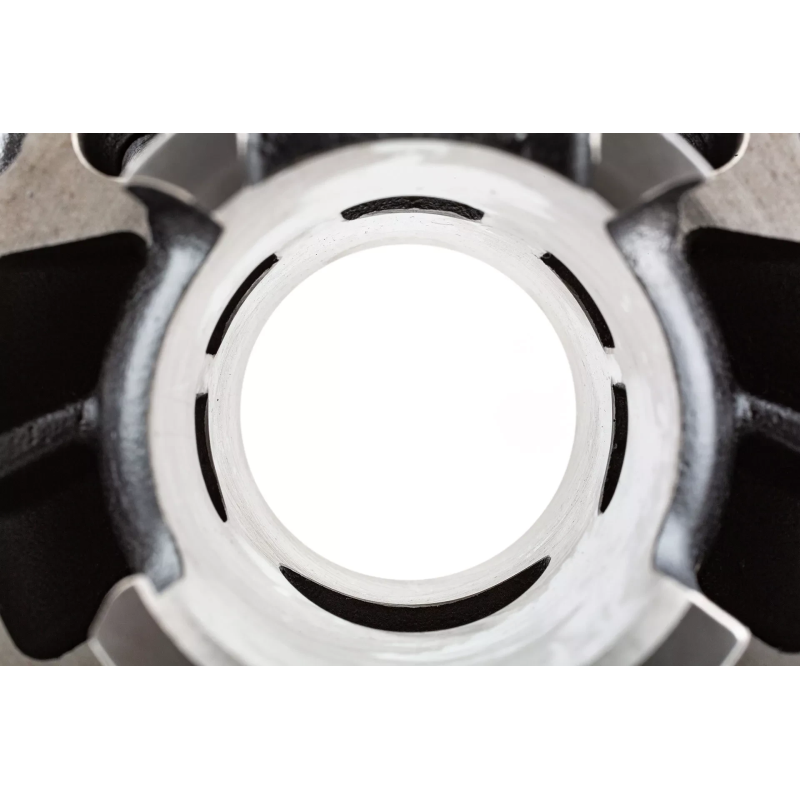

Stage6 Streetrace 50cc 40mm Cylinder Kit – Piaggio LC – Water Cooled

The Stage6 Streetrace 50cc cylinder kit for Piaggio 50cc liquid-cooled (LC) engines offers an excellent balance between acceleration and top speed. Thanks to its original appearance, this cylinder is a true wolf in sheep’s clothing.

With a 40 mm bore (50cc), this kit is designed for standard stroke crankshafts and uses a 12mm wrist pin. Manufactured from cast iron, it provides durability and consistent performance for sporty daily use.

The Stage6 logo is subtly cast into the cylinder and marked 49cc on the side, making it visually similar to an original cylinder.

Cylinder features:

• 40mm 50cc cast iron cylinder
• 5 transfer ports
• Oval exhaust port
• Liquid cooled (LC)

Technical specifications:

• Brand: Stage6
• Type: Streetrace
• Displacement: 50cc
• Bore: 40 mm
• Cooling: Liquid cooled (LC)
• Wrist pin: 12 mm
• Stroke: Standard
• Engine: 2-stroke
• Tuning level: Sport
• Article number: S6-7114020
• GTIN: 4260405314300

Supplied including:

• 40mm cast iron cylinder

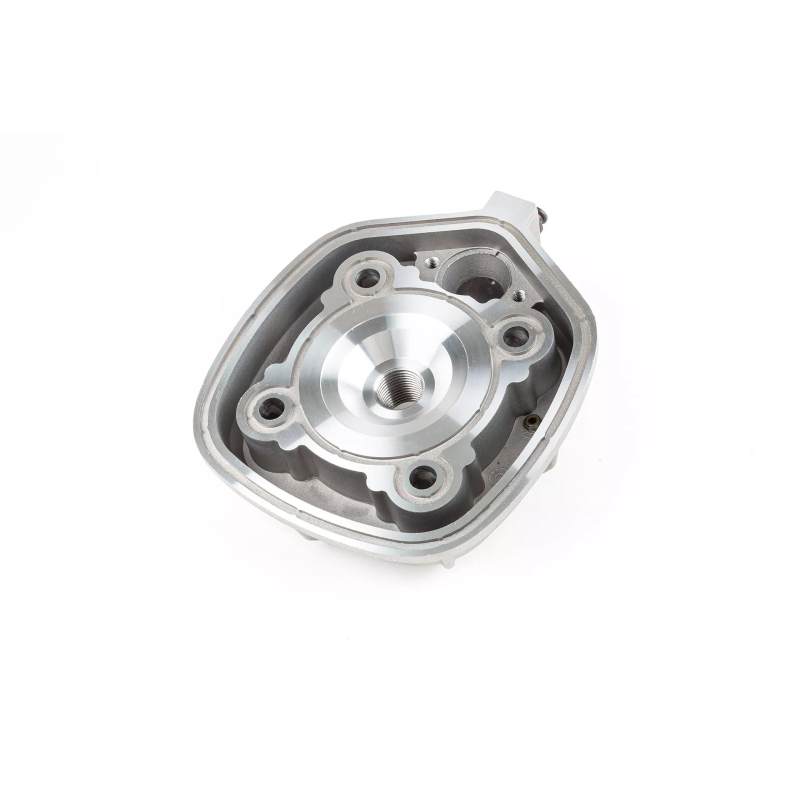

• Cylinder head
• 40mm piston with 2 piston rings
• Wrist pin
• Piston clips
• Gasket set

Fitment:

All Piaggio & Gilera 50cc liquid-cooled engines from 1997 onwards (5-corner cylinder head).

Separate gasket set (optional):

Stage6 Streetrace Gasket Set Piaggio LC

Also known as Stage6 50cc Streetrace Piaggio LC cylinder, Stage6 40mm cast iron sport cylinder or Piaggio LC 50cc Stage6 cylinder kit.
