Top Performances 50cc 40mm Cylinder Kit – Piaggio LC – Cast Iron

The Top Performances 50cc 40mm cylinder kit is a high-quality replacement cylinder for Piaggio 2-stroke liquid-cooled (LC) engines. Manufactured in Italy, this durable cast iron cylinder offers reliability and long service life.

With a 40 mm bore, it maintains the original 50cc displacement and factory performance. Ideal as an OEM replacement or high-quality rebuild option.

The cylinder features 5 transfer ports and an oval exhaust port for efficient gas flow. The included one-piece high compression aluminium cylinder head ensures optimal combustion and heat dissipation.

Technical specifications:

• Brand: Top Performances
• Displacement: 50cc
• Bore: 40 mm
• Cooling: Liquid cooled (LC)
• Cylinder material: Cast iron
• Cylinder head: Aluminium, high compression
• Wrist pin: 12 mm
• Engine: 2-stroke
• Tuning level: Standard / Sport OEM+
• Origin: Made in Italy

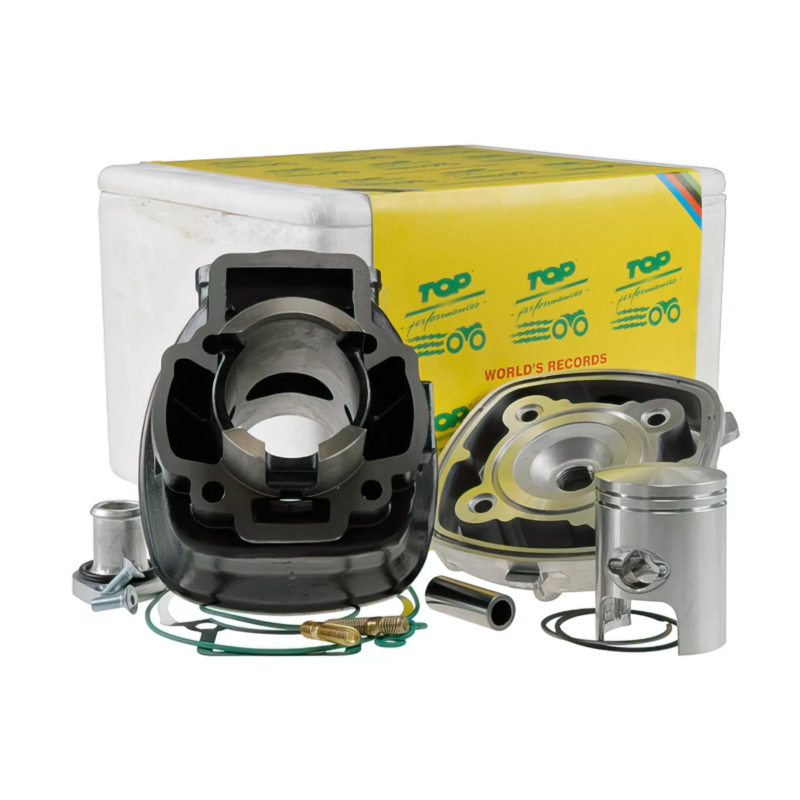

Supplied including:

• 40mm cast iron cylinder (5 transfer ports, oval exhaust)
• 40mm aluminium cylinder head
• 40mm piston (2 piston rings)
• 12mm wrist pin
• Piston clips
• Head gasket 40mm
• Base gasket
• Coolant hose connection
• Exhaust studs

Fitment:

All Piaggio 50cc 2-stroke liquid-cooled engines.

Spare parts for this cylinder:

Gasket set:

DR / Top Performances Piaggio LC 50-70cc Gasket Set

Piston:

DR / Top Performances Piaggio 40mm Piston

Also known as Top Performances 50cc Piaggio LC cylinder, 40mm Piaggio cast iron cylinder or Top Performances 50cc LC cylinder kit.
