Vertanding Lagerset 6-delig – Voor Piaggio Zip, LX en meer

Transmission (vertanding) rebuild kit – Piaggio short engine block

This 6‑piece kit is designed for Piaggio 2‑stroke scooters with short engine blocks, such as the Zip, LX, and Fly. Ideal for rebuilding the gearbox (vertanding), this set includes sealed and open bearings, plus high-quality oil seals – all according to OEM specs.

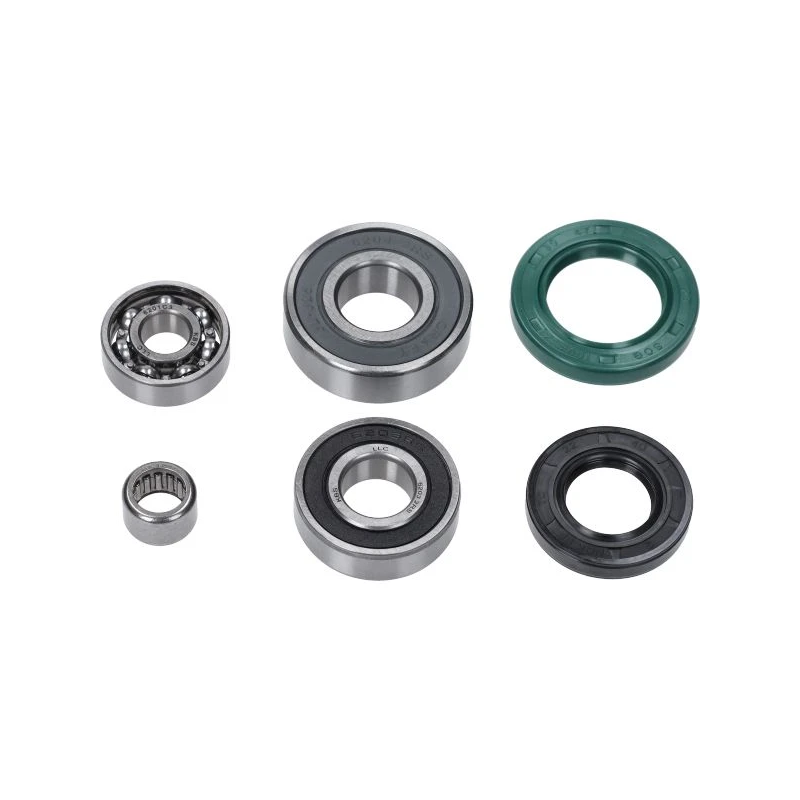

Kit contents:

• 1x Ball bearing 6203 2RS (17×40×12 mm)
• 1x Ball bearing 6204 2RS (20×47×14 mm)
• 1x Ball bearing 6201 C3 (12×32×10 mm, open)
• 1x Needle bearing HK1212 (12×18×12 mm)
• 1x Oil seal 30×47×7 mm
• 1x Oil seal 22×40×7 mm

Compatibility:

• Piaggio: Zip 50 cc 2T, LX 50 cc 2T, Fly 50 cc 2T
• Engine type: Piaggio short 2T engine

Benefits:

• Complete transmission rebuild kit
• Perfect fit for short Piaggio engine cases
• 2RS bearings offer better protection against dirt and moisture
• Oil seals prevent leaks and improve transmission life

Tip:

Don’t forget to add gear oil (Putoline 75W-90) to your order for the best rebuild result.
