74cc Cylinder Kit Gilardoni/Italkit with Reed Valve & Head – Puch Maxi & Tomos (47mm)
High-performance 74cc (47mm) Gilardoni/Italkit aluminum cylinder kit with reed valve and matching head. Fits Puch Maxi and can be adapted for Tomos A3, A35, A55. Includes piston, reed valve, intake manifold, and gasket set.
High-performance 74cc (47mm) Gilardoni/Italkit aluminum cylinder kit with reed valve and matching head. Fits Puch Maxi and can be adapted for Tomos A3, A35, A55. Includes piston, reed valve, intake manifold, and gasket set.

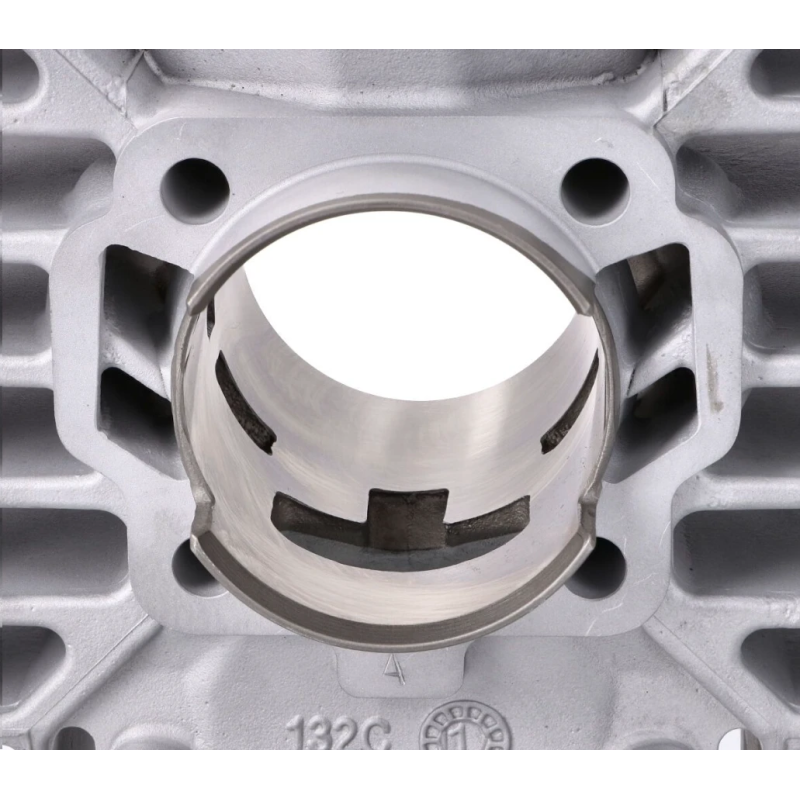

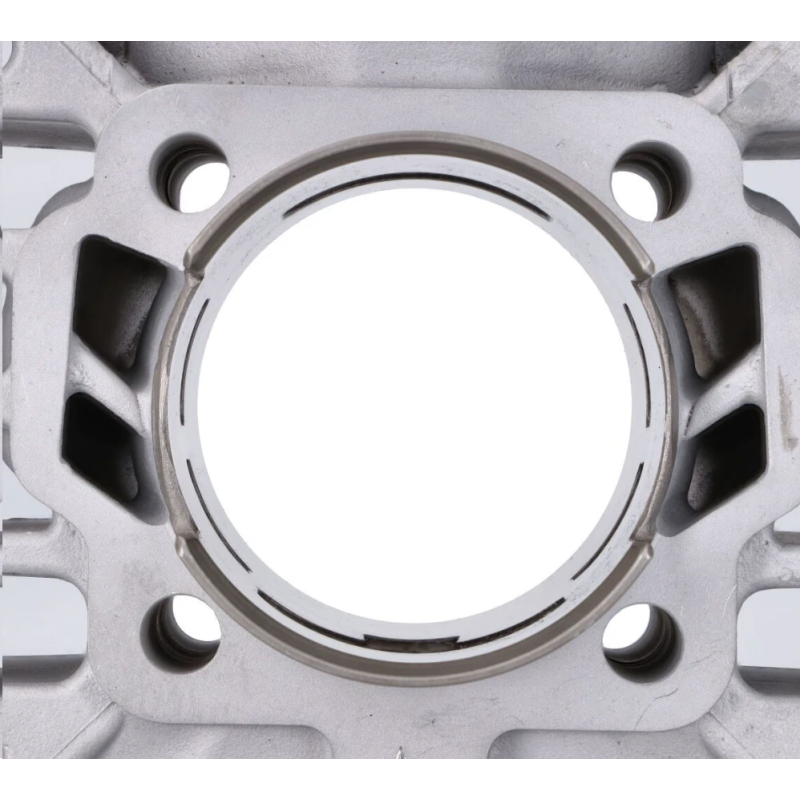

This high-quality 74cc (47mm) aluminum cylinder kit by Gilardoni/Italkit is ideal for experienced tuners. Originally designed for Puch Maxi, it can be adapted to Tomos A3, A35, and A55 thanks to identical crankshaft stroke and stud spacing. Note: installation requires modifications to the exhaust flange, intake manifold, and potentially machining the crankcase and ports.
Specifications:
- Bore: 47mm
- Displacement: 74cc
- Material: Aluminum with Nicasil lining
- Piston pin: 12mm
- Cylinder base diameter: 51mm
- Intake manifold inner diameter: 18mm / outer: 23mm
- Reed valve intake with angled exhaust port
- Compatible with Bing 17mm carb (21mm recommended)

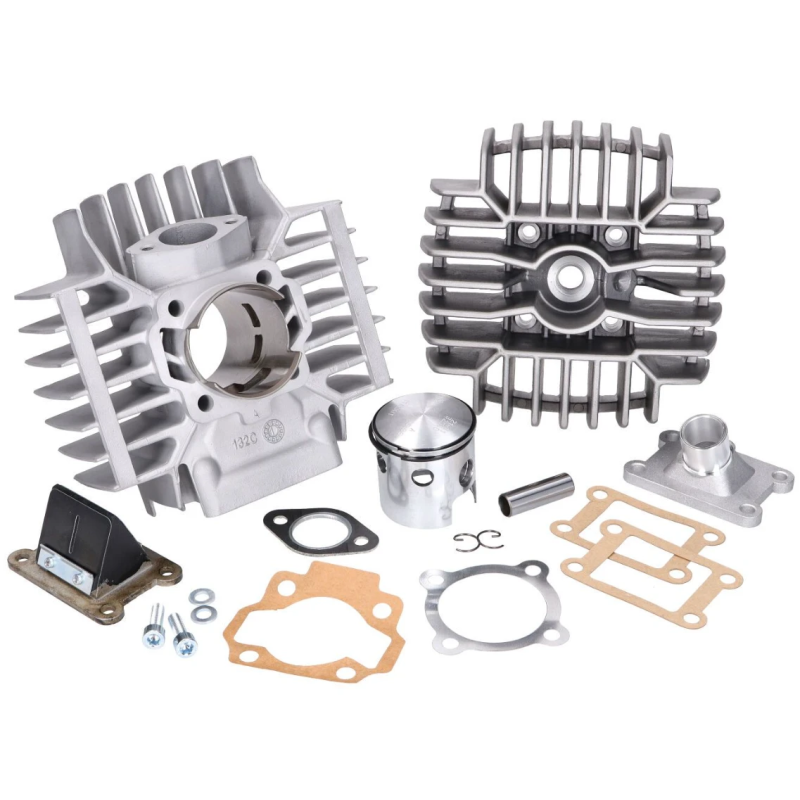

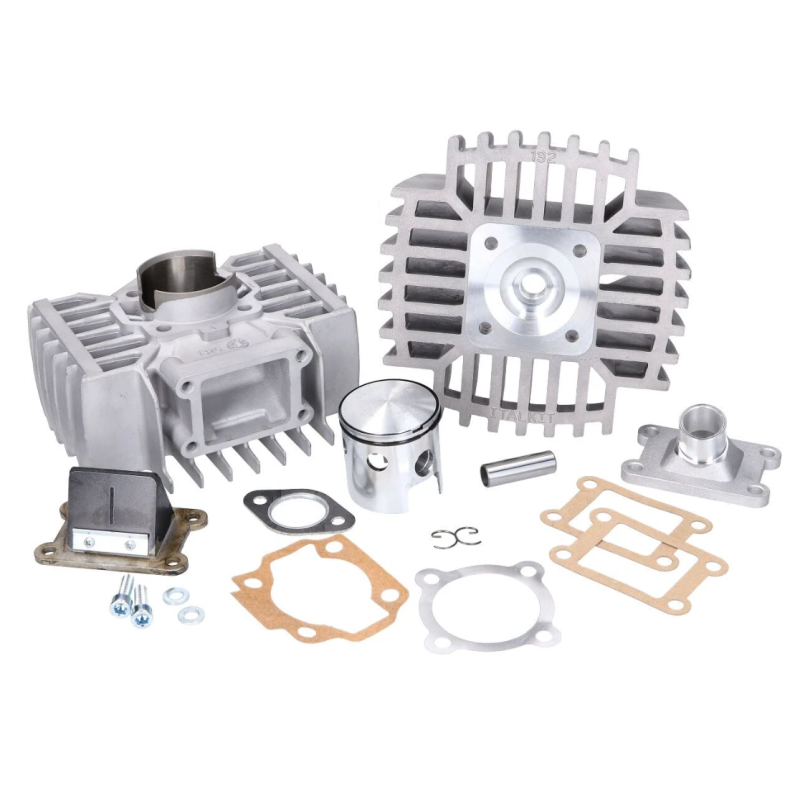

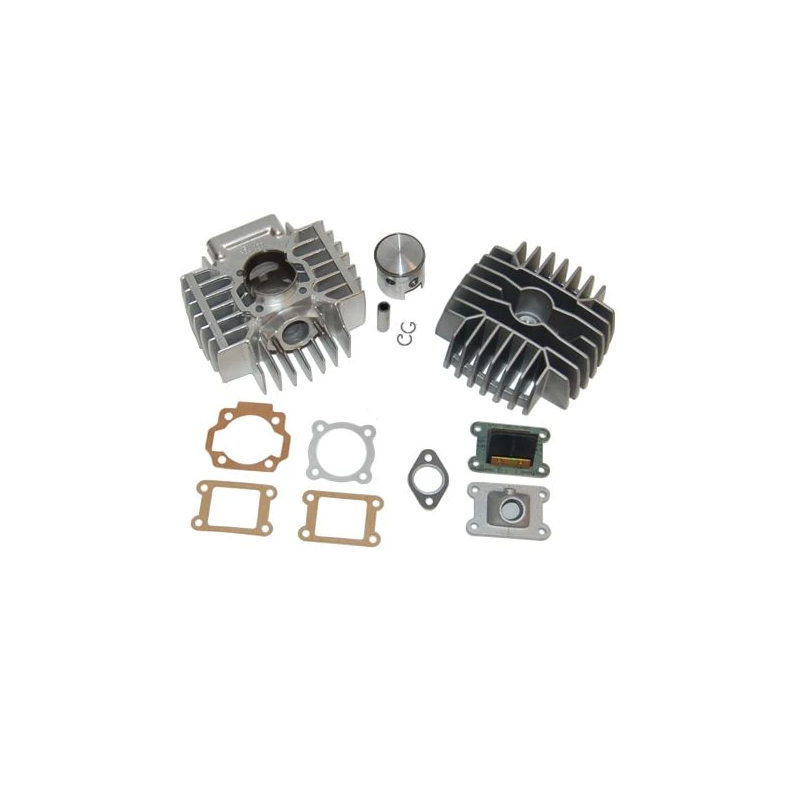

Kit includes:
- Cylinder
- Cylinder head
- Piston with rings
- Piston pin + clips
- Reed valve
- Intake manifold
- Gasket set
Fits: Puch Maxi, Monza, Condor, Cobra, Magnum X (requires crankcase machining). Adaptable for Tomos A3/A35/A55 with modifications.
- Article number
- A0604A-31762
- Brand
- Gilardoni / Italkit
- Aantal CC
- 74CC
- Motortype
- Puch
Tomos
